Both of these were correct! Thanks! Followed the instructions in this video to figure out where to disable it in the ASUS BIOS and to get some more background on the issue:



The TDP "boosts" to 122W for a max 28 seconds according to the Intel Extreme Tuning Utility. During these periods of boost, I'm seeing all of the cores at 4.6 GHz instead of 4.3 GHz, which is what I would expect. The maximum temperature after running a few tests (CPU and Memory tests) show a running average of 76 deg C, and a max around 84 Deg C. So That makes me feel better about the delid and cooling solution I have in place.

However, this issue now has gone almost completely the other way in that I cannot get a sustained 4.3 GHz across all cores as I would expect a standard i7-8700 to do. Now with MCE disabled and when it's not in this 122W boost period, it comes down to 65W TDP as expected, but the speed seen on the cores bounces around 3.83 GHz to 4.03 GHz. "Power Limit Throttling" is the reason that the Intel ETU is flagging. If the i7-8700 is rated for 4.3 GHz across all cores in "normal TDP operation", what could I have set incorrectly for not being able to sustain 4.3 GHz? So now that I know where the MCE function is and what it does I may see if tried to see if I could tweak it to get a decent clock just above TDP that would then not overload my cooling solution. After a significant amount of playing around with bios settings trying to figure this out, I ran through the following scenarios:
  • Disable MCE with XMP enabled - Temps are good, avg around 76C as above, can run forever like this but I never have long periods of sustained 4.3 GHz on the cores. Constant Power Limit Throttling.
  • Disable MCE and XMP - Really no change (marginal if anything). Temp still avg 76C and heavy power limit throttling. I was expecting to see more change here given that XMP is an overclock, and more power would be available if the memory sits back where the CPU is designed for.
  • Reload Defaults and disable MCE - No change beyond the above.
  • Perform 5-Way optimization as per the Asus Bios Utility - This seemed stable, but the temps were on average for a 5min load test around 98C peaking at 101C and on the verge of the thermal limiter. This had boosted the reference clock to 102.50 MHz. So next step was to try scaling this back to stock....
  • 5-Way optimization with ref clock at 100MHz - Marginal temp decrease, maybe an average of 96C and creeping upward. Still too high for my comfort.
So now I'm a bit lost what to do and how to set the bios as I have no experience overclocking, but willing to dabble and learn. I want XMP enabled and the CPU to sit at 4.3 GHz on all cores, but don't know how to set this up without seeing large temp gains (ie. with the 5-way opt utility). I would like to start off with the default bios settings with no MCE and XMP enabled, and then boost voltage or the TDP maximum just a bit to see if I can get a stable 4.3 GHz multi-core clock with no more than a 10C rise from my current 76C measure. Any guidance would be appreciated. I'll probably post this issue on the ASUS ROG forum to see what I should be looking at in the bios for a nice half-way point.


Processor base frequency is 3.2GHz on intel website.

I would think only synthetic loads will push the cores down 3.8-4.0. everything else should be perfect. That said you should be able to gradually up the TDP setting until you get a good balance between clock speed and temps.

Orderd seperate cables and sleeves and a crimping tool at MDPC-X and some connectors at Hoghflow.nl ... custom PSU cables here we come!

Orderd seperate cables and sleeves and a crimping tool at MDPC-X and some connectors at Hoghflow.nl ... custom PSU cables here we come!

MDPC-X is pretty great, the best you can buy and can hold its shape forever, but it's pretty rigid imo. In a case this small I'd use softer sleeving like paracord. In my mAtx build I use and prefer mdpc-x though. Let us know how it goes.

I did not find them in a retail store, I ordered 5 pieces of an M2 standoff 25mm as a sample via a wholesale partner. I have no idea where to find them on the internet or in a "normal" shop



I designed the plexiglasses using Autodesk Fusion 360 (it's free) on macOS (no idea what tools to use on Windows, most lileky they have Windows versions too), it's not that difficult at all.

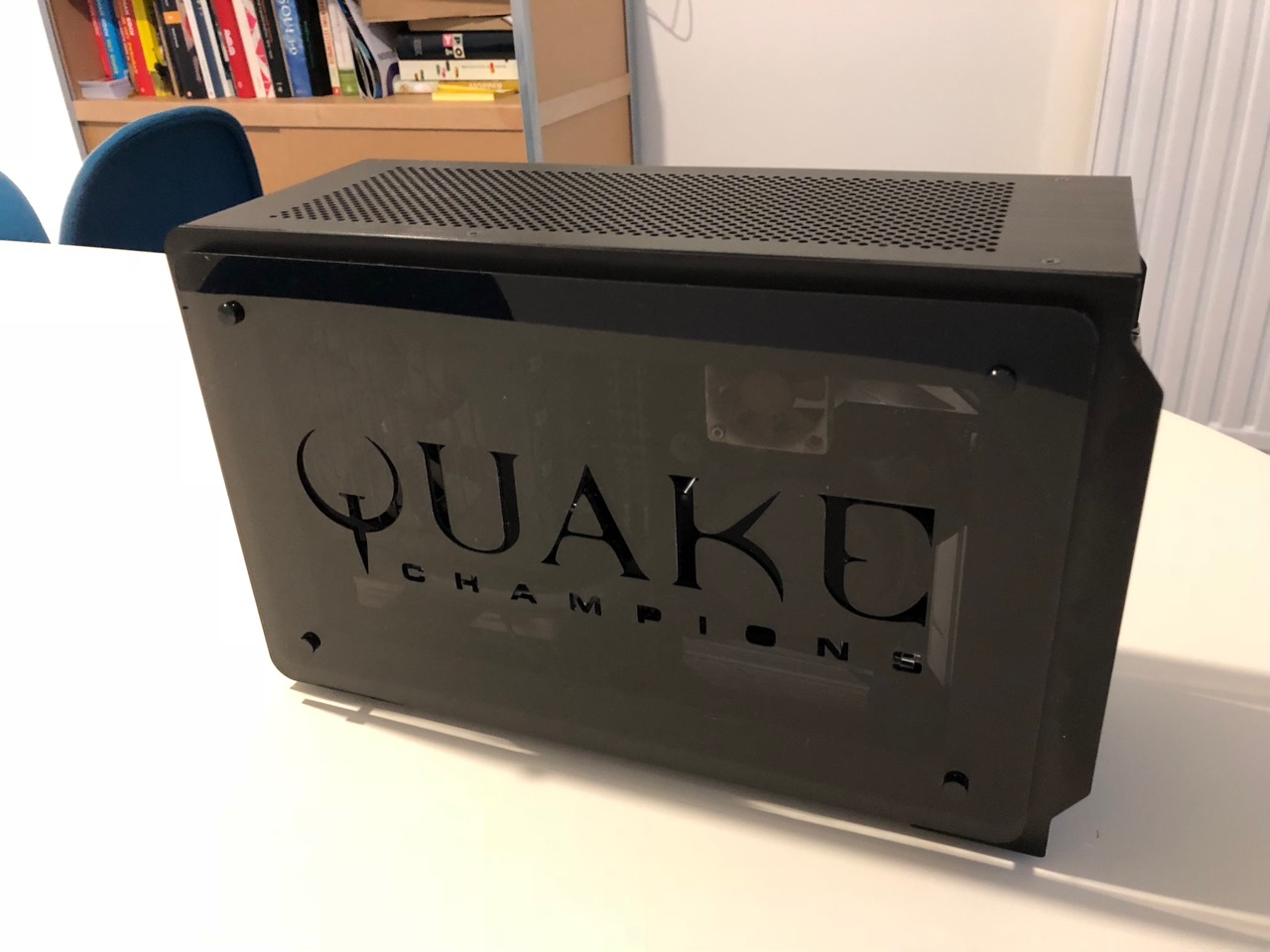

I got three more designs incoming, they will probably be delivered next week Monday. This time an updated Doom version, the Quake Champions logo and one with all the Quake logo's to date (1,2,3,4, live, champions). The previous ones were acrylic transparent coloerless 3mm, for the new ones I ordered the same "greyish" shade like the original prexy.

All you need is the DXF file dondan provides on his website ( Window Kit Template - DXF File 0.4 MB ), edit in a tool of your liking, keeping the 4 holes to mount it on the sidepanel, and export it as a file format that the company that'll (laser)cut your design. It's about €20 per panel, depending on the complexity of the cuts (more cuts = higher price).

I used https://snijlab.nl/en, they have a webshop where you can upload your drawings and have their systems verify your design. If your design looks ok in the preview, they'll be able to produce it. I don't know where you're from, but they ship internationally.

Would anyone be interested in a "howto" on how to make these plexi designs? dondan : are you ok if I would try to write that up?



Thanks for your answer! Its really hard to find some of this type. Could you sell me one standoff? Where do you live? ;)

I finished the "manual" (lack of a better word) to create your own plexiglass designs.

Feel free to comment or let me know if something wasn't clear!


Attachments

  • DAN A4-SFX Window Kit Custom Plexiglass Design.pdf
    784.6 KB · Views: 24
Update: A4-SFXv3 full feature list:

I made the decission to add some more feature to the v3, because before it was more like a v2.1

  • Lian Li 300mm PCIe Gen3 riser
  • Power button is now very close to the switch on the PCB. This will result in a more accurate pressure point
  • Front USB is angled to be compatible with 92mm Asetek AIO
  • Increasing the slot hole count for bottom fan
  • Including 120mm AIO Bracket for ITX GPU, HDPlex or Flex PSU usage (with SFX 177mm long GPU like Gigabyte GTX 1080 Mini ITX, with HD Plex 273mm long GPU and with Flex 215mm long GPU)
  • Adding HDPlex 400W mountpoints and DC-Jack bracket
  • FLEX PSU support to use 120mm AIO and Zotac GTX 1080 Ti Mini and internal PSU (Maybe this will be an optional accessory)


Regards and thank you for your support
Daniel Hansen

Awesome additions! Would it be too much to ask for 80mm fan mounting under the mainboard?

dondan would you consider USB type C instead for the front port of version 3 or do you still think too few motherboards support it? I'm thinking by the time you ship V3 its a safe bet to adopt the new standard

What about a bracket for 80x10mm fan mount on top , above the GPU/MB?
Would be Nice aswell

It looks like a bracket can be implemented just like the 120mm bracket you’ve made dondan


Attachments

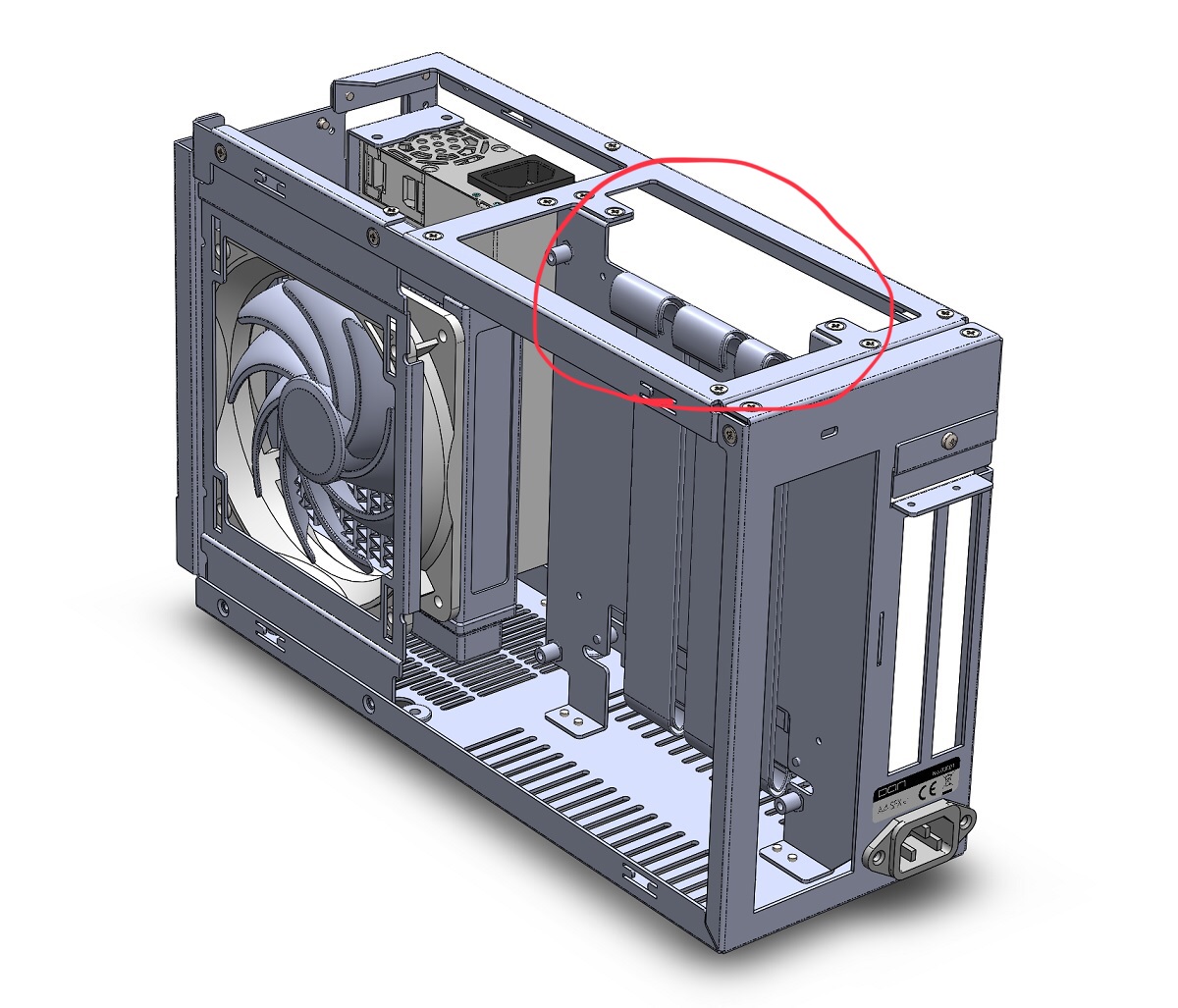

  • 8DCC92F3-18B3-4CA8-871F-A089F802BAB7.jpeg
    249.4 KB · Views: 81
Last edited:
The card would be clash with the power connector if i move it down.

  • Like
Reactions: D10S
like this
Could you bump the connector down a couple mm? It looks like there's about 3mm clearance already.

(Besides, if you move the motherboard but not the GPU the two won't be aligned on the back panel.)

Last edited:
Question for those doing the mini-size GPUs and side-mounted radiators:

I see how this could work with HDPlex-style DC board, as there's plenty of space made available.
But how does a side rad work with a standard SFX PSU in place? Doesn't the PSU block a significant portion of the radiator, significantly hindering airflow?

Could you bump the connector down a couple mm? It looks like there's about 3mm clearance already.

(Besides, if you move the motherboard but not the GPU the two won't be aligned on the back panel.)

I just took a quick measure, there is a couple of mm of space where the GPU could be lowered down.

Dosent move that much air, and if you turn up the speed they get a bit noisy for my taste, rather want a spot for a 92x14mm Noctua :)

Dosent move that much air, and if you turn up the speed they get a bit noisy for my taste, rather want a spot for a 92x14mm Noctua :)
I just mounted a small Noctua NF-A4x10 in the PSU,
replacing the original one (really very noisy),
it's really great, quiet and efficient!

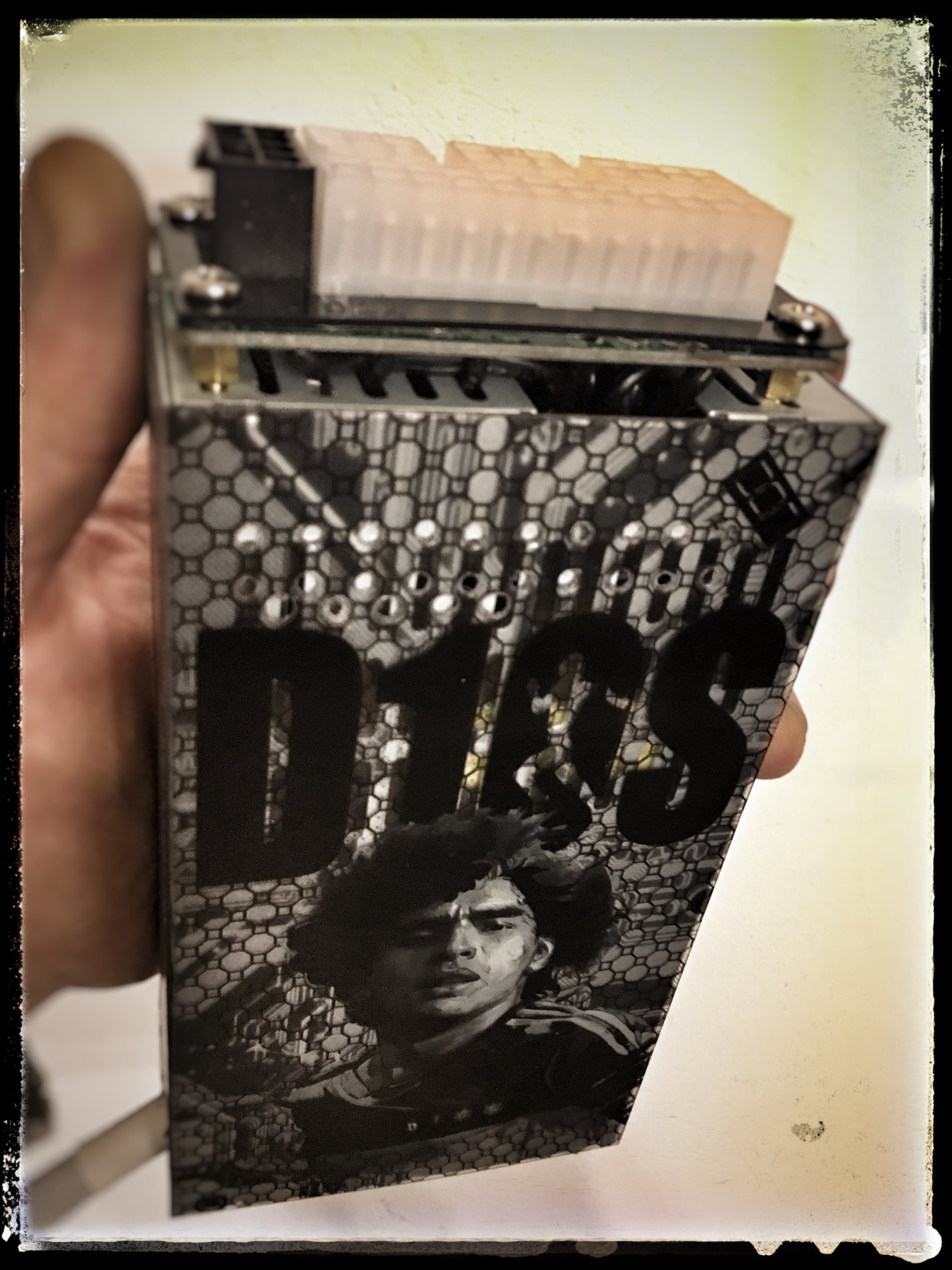

Snapseed 6.jpg
YhWzG0v

Would moving the 120mm mount as high on the bracket as possible allow the possibility of multiple 2.5" drives in the bottom?

Yes

@deglo: With an SFX psu you will have 46mm free space for radiator + fan.

For example:
22mm rad + 15mm fan = 37mm
22mm rad + 20mm fan = 42mm
27mm rad + 12mm fan = 39mm
27mm rad + 15mm fan = 42mm
30mm rad + 12mm fan = 42mm

With HDPlex you will have 52mm free space.

With Flex psu you will have 62mm free space.

Last edited:
Update: A4-SFXv3 full feature list:

I made the decission to add some more feature to the v3, because before it was more like a v2.1

  • Lian Li 300mm PCIe Gen3 riser
  • Power button is now very close to the switch on the PCB. This will result in a more accurate pressure point
  • Front USB is angled to be compatible with 92mm Asetek AIO
  • Increasing the slot hole count for bottom fan
  • Including 120mm AIO Bracket for ITX GPU, HDPlex or Flex PSU usage (with SFX 177mm long GPU like Gigabyte GTX 1080 Mini ITX, with HD Plex 273mm long GPU and with Flex 215mm long GPU)
  • Adding HDPlex 400W mountpoints and DC-Jack bracket
  • FLEX PSU support to use 120mm AIO and Zotac GTX 1080 Ti Mini and internal PSU (Maybe this will be an optional accessory)









Regards and thank you for your support
Daniel Hansen
Nice solidworks model (y)

Yes

@dglow: With an SFX psu you will have 46mm free space for radiator + fan.

For example:
22mm rad + 15mm fan = 37mm
22mm rad + 20mm fan = 42mm
27mm rad + 12mm fan = 39mm
27mm rad + 15mm fan = 42mm
30mm rad + 12mm fan = 42mm

With HDPlex you will have 52mm free space.

With Flex psu you will have 62mm free space.

Thank you, Dan!

That's looks like a tight fit to me, and I wonder how a radiator will perform with only ~4 to 8 mm of clearance for airflow. HDPlex is the best option; while technically 'less' clearance than the Flex I would think it is functionally more, being a much thinner component than the Flex.

Does anyone using a SFX PSU with side radiator have cooling measurements? I recall somebody upthread showing off just such a rig.

Wow, amazing! The A4-SFX has really matured as far as flexibility and eliminating compromises.

The only other things I would like to see are front audio (more people need/use it than front USB I think), and vertical push pins to eliminate side panel sag. It would also be nice to have clear side panels that don't say "Dan" -- no offense, I just think more subtle branding would appeal to more people, especially when the brand's name is a person's name.

Question - with a 120x25 AIO and SFX PSU, how much clearance is there between the two?

Last edited:
Update: A4-SFXv3 full feature list:

I made the decission to add some more feature to the v3, because before it was more like a v2.1

  • Lian Li 300mm PCIe Gen3 riser
  • Power button is now very close to the switch on the PCB. This will result in a more accurate pressure point
  • Front USB is angled to be compatible with 92mm Asetek AIO
  • Increasing the slot hole count for bottom fan
  • Including 120mm AIO Bracket for ITX GPU, HDPlex or Flex PSU usage (with SFX 177mm long GPU like Gigabyte GTX 1080 Mini ITX, with HD Plex 273mm long GPU and with Flex 215mm long GPU)
  • Adding HDPlex 400W mountpoints and DC-Jack bracket
  • FLEX PSU support to use 120mm AIO and Zotac GTX 1080 Ti Mini and internal PSU (Maybe this will be an optional accessory)









Regards and thank you for your support
Daniel Hansen
Please, eliminate the central stripe/plate in the gpu backside, to enhance blower type gpus ventilation. It is useless.
