    But, i'm really asking what gpu in the build, a short one? Reverse gpu?

    Julio Espinosa likes this.
  2. Kim hyun seung

    Kim hyun seung n00b

    Messages:
    6
    Joined:
    Apr 21, 2017
    InkedIMG_0825_LI.jpg InkedInkedIMG_0821_LI.jpg InkedIMG_0822_LI.jpg

    It's my plan ^^

    (My GPU is Titan XP)

  3. Gazoo

    Gazoo Gawd

    Messages:
    519
    Joined:
    Mar 5, 2007
    Did you ever end up getting/testing? How did you like?

  4. pwiepengel

    pwiepengel n00b

    Messages:
    4
    Joined:
    Feb 1, 2018
    Wow, looks great. Would you share the 3D file with us?

    Regards, Marcel

    CDubbs likes this.
  5. D10S

    D10S Limp Gawd

    Messages:
    132
    Joined:
    Jan 31, 2017
    Kim hyun seung likes this.
  6. oblongpolygon

    oblongpolygon [H]Lite

    Messages:
    90
    Joined:
    Sep 4, 2017
    Is the Noctua fan in the photos posted by Woxys, blowing air onto the CPU heatsink, or sucking air away from the CPU heatsink?

    I feel like it's gotta be blowing air onto the heatsink... but, would just like to check / confirm with you folks.

  7. D10S

    D10S Limp Gawd

    Messages:
    132
    Joined:
    Jan 31, 2017


    Last edited: Feb 27, 2018
  8. oblongpolygon

    oblongpolygon [H]Lite

    Messages:
    90
    Joined:
    Sep 4, 2017
    I realise, now, that I'm basically blind.

    D10S likes this.
  9. sldr

    sldr Limp Gawd

    Messages:
    194
    Joined:
    Feb 7, 2017

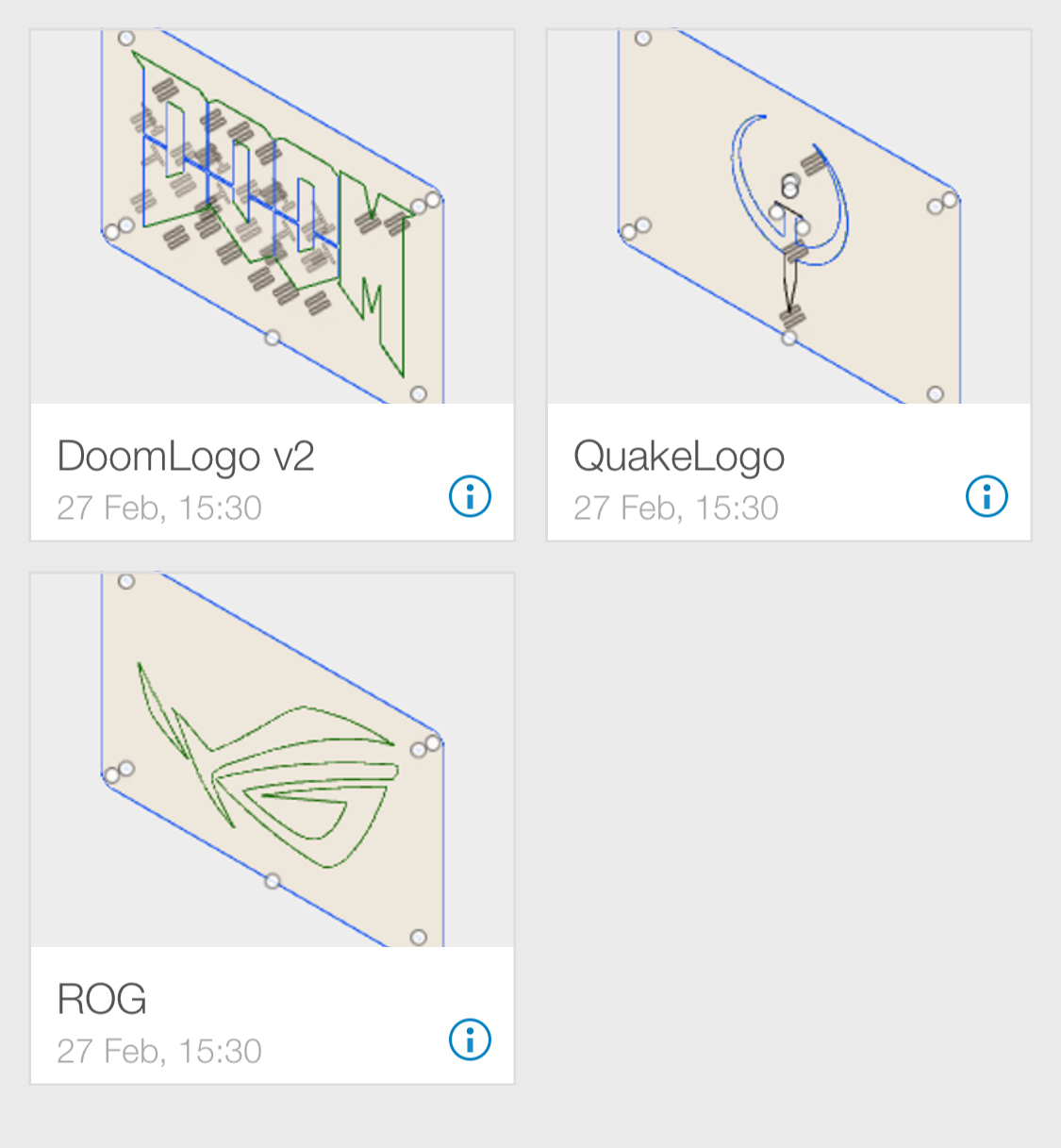

    Fingers crossed, I have sent 3 designs to a company that laser cuts (or whatever) Acryl glass

    Alaberti, richiegore and D10S like this.
  10. PC-HAngover

    PC-HAngover [H]ard|Gawd

    Messages:
    2,007
    Joined:
    Jan 2, 2003
    It came in the other day but I haven't gotten a chance to test it. I'll let you know when I do!

  11. derGeorg

    derGeorg n00b

    Messages:
    5
    Joined:
    Jan 24, 2018
    Do you have pictures of the Designs for us?

  12. sldr

    sldr Limp Gawd

    Messages:
    194
    Joined:
    Feb 7, 2017
    They’re on this page, schroll a little to the top...

  13. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    The 100x12 just fits after modification, I milled off 1.5mm in too strips either side so it sits up between the top frame. I can hear it at idle which I don't like, even with a noctua low noise adaptor. Considering it isn't really necessary I won't be keeping it. I will try the 80mm one at some point, it has PWM which my be quiet at idle and more effective at load due to higher rpm... I do love to tinker!


    Attached Files:

  14. Alaberti

    Alaberti [H]Lite

    Messages:
    85
    Joined:
    Jan 21, 2018
    Any concerns about having the fan pressed up against the pcie extender?

    Last edited: Feb 27, 2018
  15. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    I made a fan guard, specifically designed to keep the extender away from the blades without putting too much pressure on it. I've already removed the fan though, i preferred the computer totally silent at idle also I don't think the fan pushed much air at all. I will try the 80x11mm fan soon.


    Attached Files:

    Alaberti and tyen_ like this.
  16. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    Looks like it belongs, shame it didn't work out. How fast was it running at idle? I've had the same concern with noise here too but a louder whisper beats the GPU flaring up to a loud 38% fan speed every 5 seconds under minor load because it doesn't get enough passive cooling (why can't they use PWM fans already?). Hence looking into this

  17. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    Only 900rpm, but it was audible. Can't you set a custom fan profile on your GPU so they always spin? That way you might get them to constantly spin at something lower like 30% rather than jumping to 38%. I did that on my MSI card.

  18. Alaberti

    Alaberti [H]Lite

    Messages:
    85
    Joined:
    Jan 21, 2018
    Has anyone fit g.skill trident ram while using the AIO? I read somewhere that they didn't fit.

    Edits for rushed typing.

  19. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    ASUS GPU Tweak can't count from 0 to 38. Think Afterburner would let me then?

  20. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    Probably will let you go lower that 38, there will be a minimum fan speed which is determined buy the fan itself though.

  21. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    Well it works, I can get it down to 18 but it takes about 30 for it to not do the rattley sound it does when the fan spins down. Quiet but distinct, would probably not hear it so clearly if it wasn't on my desktop

  22. Sebbie

    Sebbie Limp Gawd

    Messages:
    253
    Joined:
    Mar 18, 2016
    It dosent fit.
    The tubing is not long enough to go “under” the RAM slots.
    And if you try go “over” the side panel cant close.
    If you want to WC your CPU, get some other RAMs or make a custom loop.

    Julio Espinosa likes this.
  23. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    Yea, are they ball bearing fans? They are usually like that, go too slow and they get rattley. I would have thought 30% would be quiet enough that you don't notice the noise after a couple of minutes? What rpm are they at at 30%?

  24. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    1140ish. The sound profile of the fan becomes apparent at around 20%/750rpm, which I guess is a testament to how quiet my PC would be otherwise

  25. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    1140rpm is a bit high alright, maybe try putting your case on the other side of your desk, gpu facing away, if you can.

    I'd say a fan under the gpu/motherboard might be better at keeping the gpu from spinning up than adding an exhaust fan.

  26. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    That was the plan with the NF-A9 in the drive bay but it doesn't manage it on it's own above essentially idle workloads, that also suffers from noise issues above 40% RPM.
    But I got two of those 80mm Akasa fans coming anyway.. I'll be able to have both. One above, one below.

    Last edited: Feb 28, 2018
    richiegore likes this.
  27. Alaberti

    Alaberti [H]Lite

    Messages:
    85
    Joined:
    Jan 21, 2018
    Thanks. I have Corsair vengeance 3200MHz already in my case, but I've been eyeing the 3600MHz kit to get more out of my 1800X (my box is not used purely for gaming and has applications that enjoy the enhanced memory performance). I would have preferred the g skill kit but the Corsair ones will do.

    Edit: my case is already assembled with the AIO already, previously posted a few pages back.

  28. ZTylerDurden

    ZTylerDurden n00b

    Messages:
    11
    Joined:
    Sep 16, 2012
    Hi guys,

    This is my first post in a really long while. I'm happy to let you all know I'm receiving the last components for my a4 sfx v2 build.

    I'm installing the the 545lc asetek aio with a noctua 92mm fan. I have the 8700k delidded and ready to go.

    I haven't seen anyone post overclocking results with this setup because either:

    A) No ones dumb enough to overclock inside of this case
    B) The V2 hasn't gotten into enough hands of Kickstarters


    You guys think there's a chance I would be able to overclock the 8700k to 4.9-5.0ghz at reasonable temps, delidded?

    Thanks!!

  29. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    14,230
    Joined:
    Oct 7, 2000
  30. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    https://docs.google.com/spreadsheets/d/
    1aZfTysWc4dtJC33qkLCjLkhPnzVLtbCtjpxoZeT92ZA

    Put the two together. You're welcome. (Can the forum stop turning it into a broken google document link?)

    Julio Espinosa and D10S like this.
  31. ZTylerDurden

    ZTylerDurden n00b

    Messages:
    11
    Joined:
    Sep 16, 2012
    What’s that link supposed to be? Pardon the noobness in advance.

  32. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    It's a spreadsheet of A4-SFX builders' CPU overclocks and thermal results after a quick CPU benchmarking.

    Julio Espinosa likes this.
  33. ZTylerDurden

    ZTylerDurden n00b

    Messages:
    11
    Joined:
    Sep 16, 2012
    Oh ok, it didn't work on my phone.

    Whoa! Ok. I think I'll be happy with no thermal throttling.

  34. D10S

    D10S Limp Gawd

    Messages:
    132
    Joined:
    Jan 31, 2017
    Fantastic file m8 !

    A4 OC TEMPS.png

  35. blitzhex

    blitzhex n00b

    Messages:
    34
    Joined:
    Feb 25, 2018
    Finished my build today in the v2. The l9i isn't here yet, so I used a unused stock intel cooler I had left over from my 4690k.
    I didn't even bother changing the pre-installed 4 years old thermal paste that was on the heatsink, lol. So far my 8700k hasn't burnt up.. running 80c at around 40% avg usage in games and it's undervolted.
    GPU running 69c at 35% fan speed, nvme m.2 w/o heatsink in the front is 50c in gaming loads, all in all very pleased with the temps.

    Going to delid the cpu when the l9i arrives. Also, didn't realize you had to put the mobo in first then the psu in this case. Had a bad time trying to cram the mobo in before I gave up and removed the psu.

    richiegore likes this.
  36. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    Fans came today, but unfortunately it's not happening. I can't get enough tension to push the riser down on top to allow the fan to spin, I don't have a fan grill custom or otherwise to stop the riser getting into the blades in that case, and when it comes to the bottom the riser is rock solid. I don't know if I have to remove the motherboard or what to move it out of the way but that thing isn't budging, so I can't sneak a fan under there. Back to the drawing board.

    Good news at least is Afterburner fan control is working somewhat well. I wear a good headset so I can't hear the bearing rattle anyway, but while playing SMITE last night I got the essential silence I deserve. No whirr every 5 seconds because the fan is going from 0 to 38% on a 55C binary fan 'curve'

    richiegore likes this.
  37. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    Have you tried ducting the lower noctua fan over to the gpu side with a bit of card?

  38. RedSawn

    RedSawn [H]Lite

    Messages:
    69
    Joined:
    Aug 15, 2017
    How would that work? My cable management's a bit shoddy, would be curious if that's another thing that won't quite fit, on the PSU side anyway

  39. richiegore

    richiegore Limp Gawd

    Messages:
    322
    Joined:
    Feb 1, 2017
    Yea you'd need to get the the PSU cables pretty neat and then I was thinking of a piece of card at an angle. Did you have a good look at these pictures regarding the top fan? He doesn't have a fan guard but maybe he just got lucky with the riser.

  40. sldr

    sldr Limp Gawd

    Messages:
    194
    Joined:
    Feb 7, 2017
    Don't know if it's ok, but I added my results to the Google Spreadsheet ...
