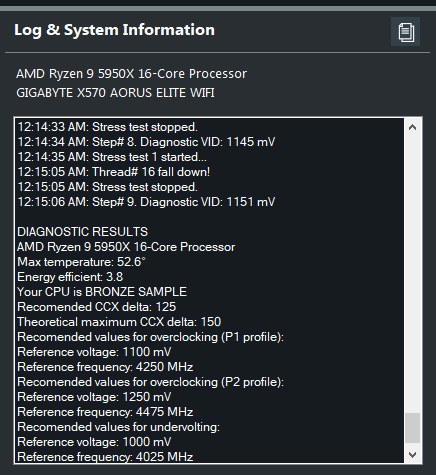

CTR 2.0 Diagnostic Results

[trick0502]

download: https://www.guru3d.com/files-details/clocktuner-for-ryzen-download.html
system is running optimized defaults and ram at xmp 3600 (16-19-19-39) 4x8gb



[trick0502]

so i reran it. curious what other 5000 series cpu are getting.



[KickAssCop]

Not sure what this test is. It keeps saying recommend to increase voltage compensation. Also CBR20 didn't finish because it said PPT limit reached whereas, my CBR20 runs just fine outside of this test. How long does it take to complete the test? I am getting bored. Also test seems to be stuck in a loop.

Mine says it is a SILVER SAMPLE. Well I already knew that because it won't go above 1867 FCLK. .



[trick0502]

It takes about 20 mins. I forgot in my original post I set llc to turbo. You don’t have to but it help with vdroop.



[alyjen]

Diagnostic is only a rough estimate and it'll change it's results based on your LLC or other settings. Tune is the real thing and take over an hour.
Below are my results

***ClockTuner for Ryzen 2.0 RC3 by 1usmus***
AMD Ryzen 7 5800X 8-Core Processor
ASUS TUF GAMING B550-PLUS
BIOS ver. 1401 SMU ver. 56.37.00
TABLE ver. 3672324
DRAM speed 3733 MHz
02/04/2021 11:49:13

Phoenix ready!


DIAGNOSTIC RESULTS
AMD Ryzen 7 5800X 8-Core Processor
Max temperature: 71,7°
Energy efficient: 3,82
Your CPU is SILVER SAMPLE
Recomended values for overclocking (P1 profile):
Reference voltage: 1250 mV
Reference frequency: 4500 MHz
Recomended values for overclocking (P2 profile):
Reference voltage: 1325 mV
Reference frequency: 4575 MHz
Recomended values for undervolting:
Reference voltage: 1125 mV
Reference frequency: 4250 MHz

Phoenix deactivated!



[TheSlySyl]

I might give this a try on my 3900X whenever I have a free day...
It looks like... a lot of tweaking.



[Andrew_Carr]

Pretty dismal results. I can get a solid 4600MHz overclock on my 5800x but that's probably about it.

https://hardforum.b-cdn.net/data/attachment-files/2021/02/428450_1612651273886.png
