Cerwin Vega VS-150

ShepsCrook

ShepsCrook

[H]F Junkie
Joined
Feb 16, 2003
Messages
9,480

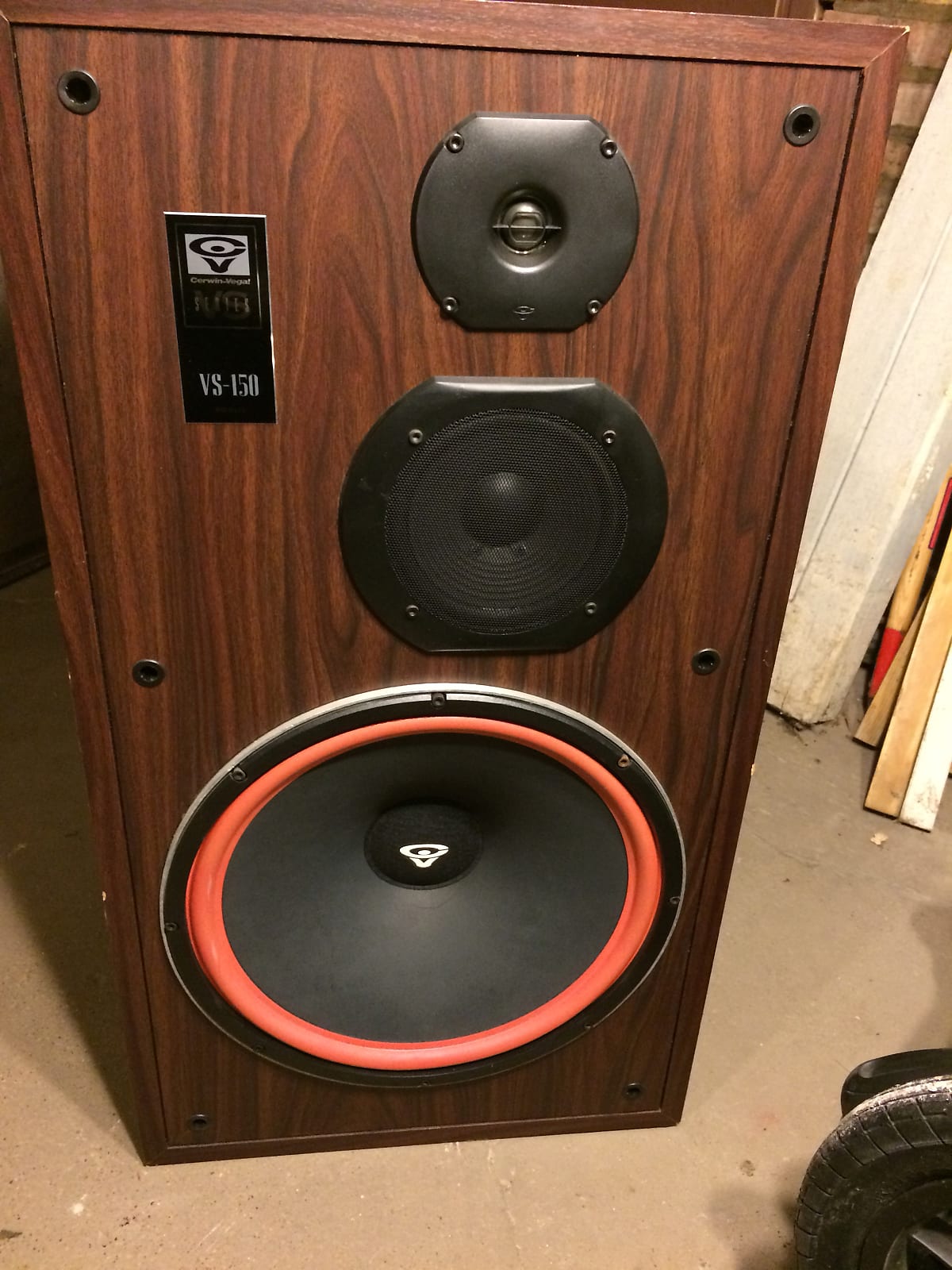

So I picked up a pair of Cerwin Vega VS-150 monsters. Not sure what I'll do with these... probably just resell them. To my understanding, with the right receiver 4Ohm, these things THUMP and should based on their 15" woofer.

Maker: Cerwin Vega
Model: VS150 ( Velocity sensitive )
3 ways speaker,
400 watt max power.
Freq: 28 - 22000kHz
sensitive 1W ,1M 102d
Impedance : 4Ohm
Base: VSW15 15"
mid: DXM6 6,5"
tweeter: VS-T3 1"
Lf driver vc size: 2,06"
Crossover frequencies: 400 hz, 6 khz.
Protection: Self-resetting PTC (high frequency)
Bass reflex cabinet
Port tuning: 33hz
Port dimensions: (2) 4” dia. X 10” long
Dimensions:
H:35.5 w:19 D:19.5
90lbs each
Speaker Finish Wood grain Vinyl

Cerwin "Party Speaker' Vega checking in. In all seriousness the VS150s are one of the better Vega's. These would probably make the best garage speakers ever, and would also hold the fort as fronts in home audio. 2.0 that everyone will think is 2.2, sure why not. I'd say give em a listen before selling. Especially considering for Vega's those cabinets are in great shape.

They should be decent speakers, especially for loud/party listening. This was one of their later models though, after they started cost-cutting a bit. The real gems are the D-9 and AT-15, the predecessors to this model, with the D-9 being the best. Those models both use dual midrange drivers and tweeters with horns to increase output. The VS-150 cuts that down to a single midrange and a tweeter with no horn or waveguide. The D-9 for example had the crossover point between the dual-mids and the horn tweeter at 3500Hz, meaning that the tweeter handled everything above that. It also had a dedicated circuit breaker to protect the tweeter (the most common component to fail during party listening). The VS-150 omits the circuit breaker, but instead has the crossover point WAY up at 6000Hz. That's really too high. At that high of a frequency, you will have a lot of your treble actually coming from the midrange, not the tweeter. In a case like this when a driver (the midrange) handles frequencies so far above it's ideal range, you end up with directivity issues where the speakers project sound forward like a cannon. If you are standing directly in front of the speakers, everything should sound fine. But step to either side, and those treble frequencies that the midrange has to handle will start to drop out. This is not ideal and was done purely to protect the tweeter, so that they could get away with omitting the circuit breaker and use a cheaper tweeter in general. The tweeter only having to handle 6000Hz and above dramatically reduces the burden on the tweeter, but it was an acoustic compromise in order to reduce costs.

But overall they should be okay, especially if your focus is on having good low-end output without using subs.

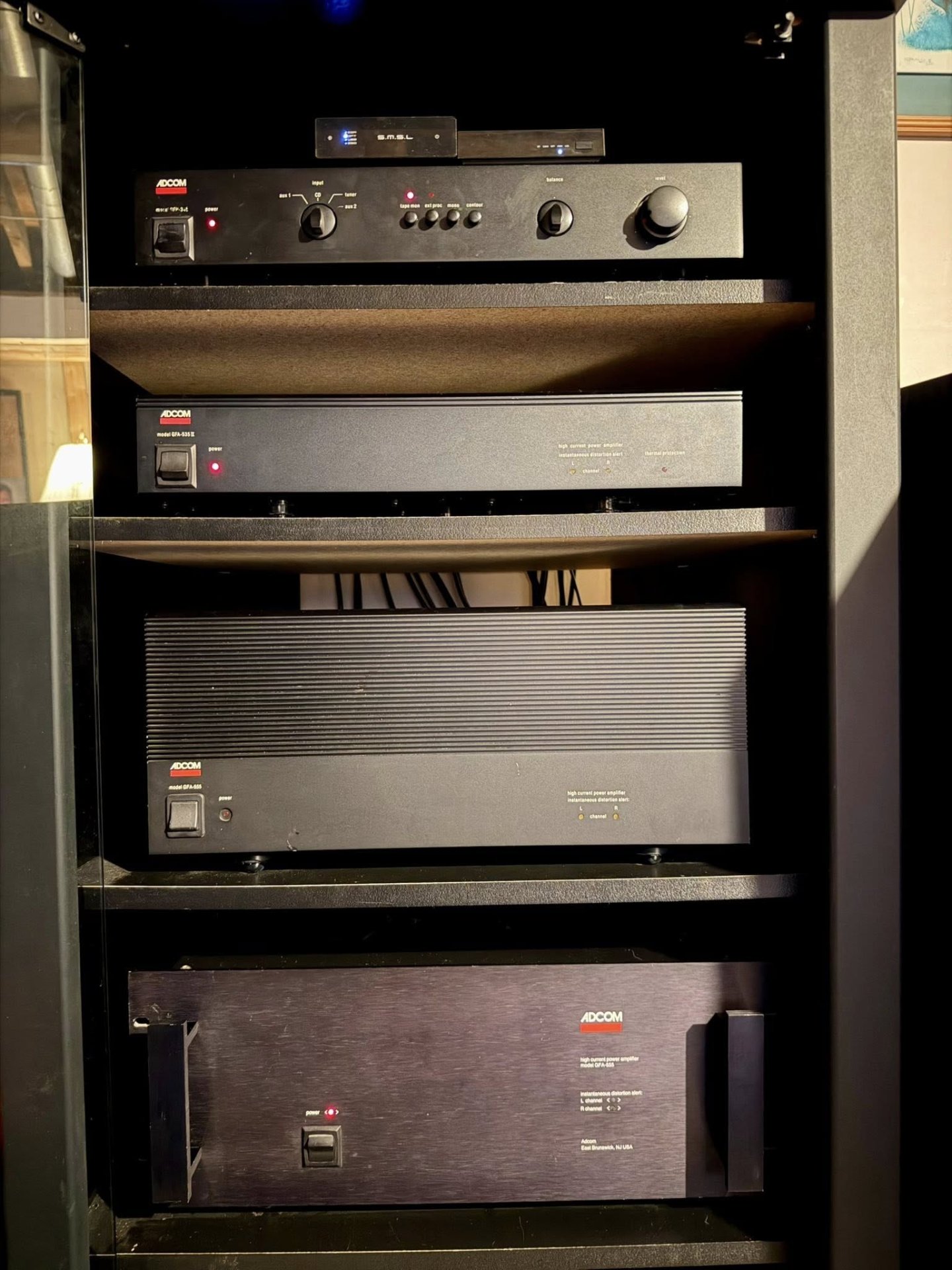

I used to run AT-15s on an Adcom GTP-450 and GFA-545 combo, and it fucking pounded lol.

Even 12s will remove pictures from the walls on multiple levels of your home if you have a good amp.

I had an H/K 680i that was an absolute beast with 12s.
