6800/6900 Overclock Results

nxcess

2[H]4U
Joined
Dec 22, 2004
Messages
2,670
Thanks for the tip bl4C3y3 . I went down a rabbit hole with MPT. I ended up settling on 2600/2700 @ 1.2v and overclocked the memory to 2150MHz fast timing. All it needed was more voltage on the SoC. Changed the power limit to 380w +15% since the card now pulls in 434w. Left the TDC @ 320 default.


https://www.3dmark.com/3dm/87704556?


ghostwich

2[H]4U
Joined
Sep 10, 2014
Messages
2,201

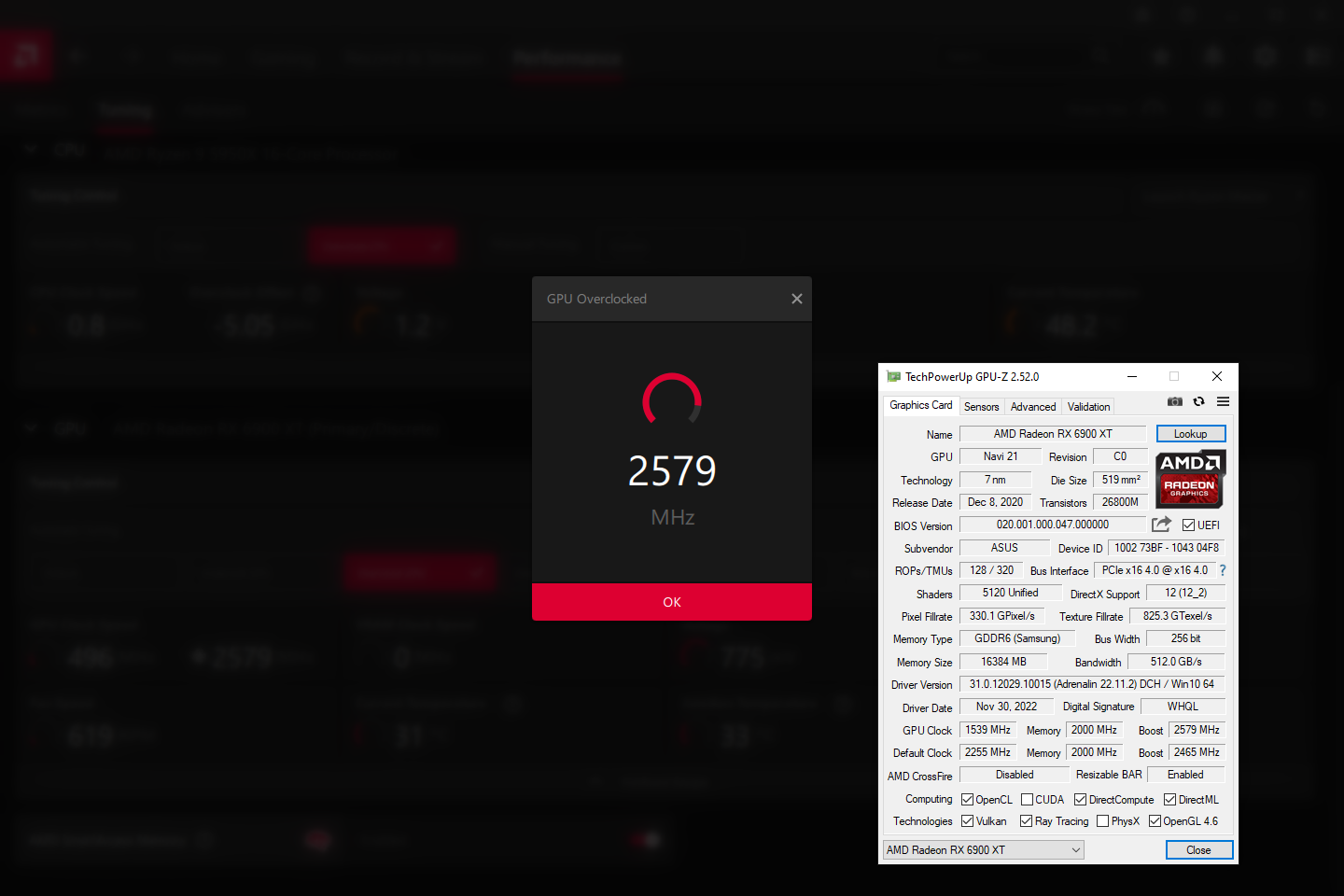

Howdy- I'm curious... should my base clock get lower when I apply an overclock? I haven't opened up GPU-Z in a while, and noticed that the base clock was in the 1500s. I thought it was a bit weird, so I went back to stock, rebooted, and then used the Adrenaline software to do the "auto overclock" and noticed that while the boost clock got higher, the base clock is low.

I don't recall this being normal?



R-Type

[H]ard|DCer of the Month - October 2011
Joined
Mar 6, 2006
Messages
2,757
Howdy- I'm curious... should my base clock get lower when I apply an overclock? I haven't opened up GPU-Z in a while, and noticed that the base clock was in the 1500s. I thought it was a bit weird, so I went back to stock, rebooted, and then used the Adrenaline software to do the "auto overclock" and noticed that while the boost clock got higher, the base clock is low.

I don't recall this being normal?

View attachment 544178

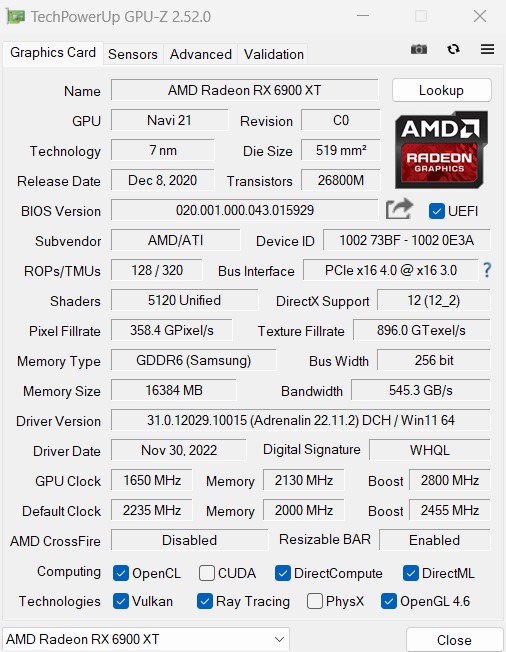

I noticed the same recently, seems to be just a wonky side effect though since the performance is as expected.


Attachments

  • GPU-z.jpg
    115.3 KB · Views: 1

ghostwich

2[H]4U
Joined
Sep 10, 2014
Messages
2,201
Thanks- I didn't think it was always like this though? So maybe it's some strangeness from the drivers. I'm not going to iteratively roll back to figure out when this started happening.


pavel

Limp Gawd
Joined
Apr 8, 2014
Messages
444
Sorry to interrupt - anyone who has compared 6900 xt cards - maybe, when you were shopping for one - or you have read info/reviews on them or chatted with ppl who have one - in forums or what no - do you have an opinion on the MSI RX 6900 XT Gaming X Trio, Gigabyte OC and Asrock Phantom Gaming cards? As they compare to the reference? Just curious. I sometimes find these cards (used) for sale - the msi one is usually the cheapest. All I read about it is that the input filtering is good and sometimes, (the only negative thing I read so far), the hotspots are a concern.


Nordskov

n00b
Joined
Feb 25, 2022
Messages
20

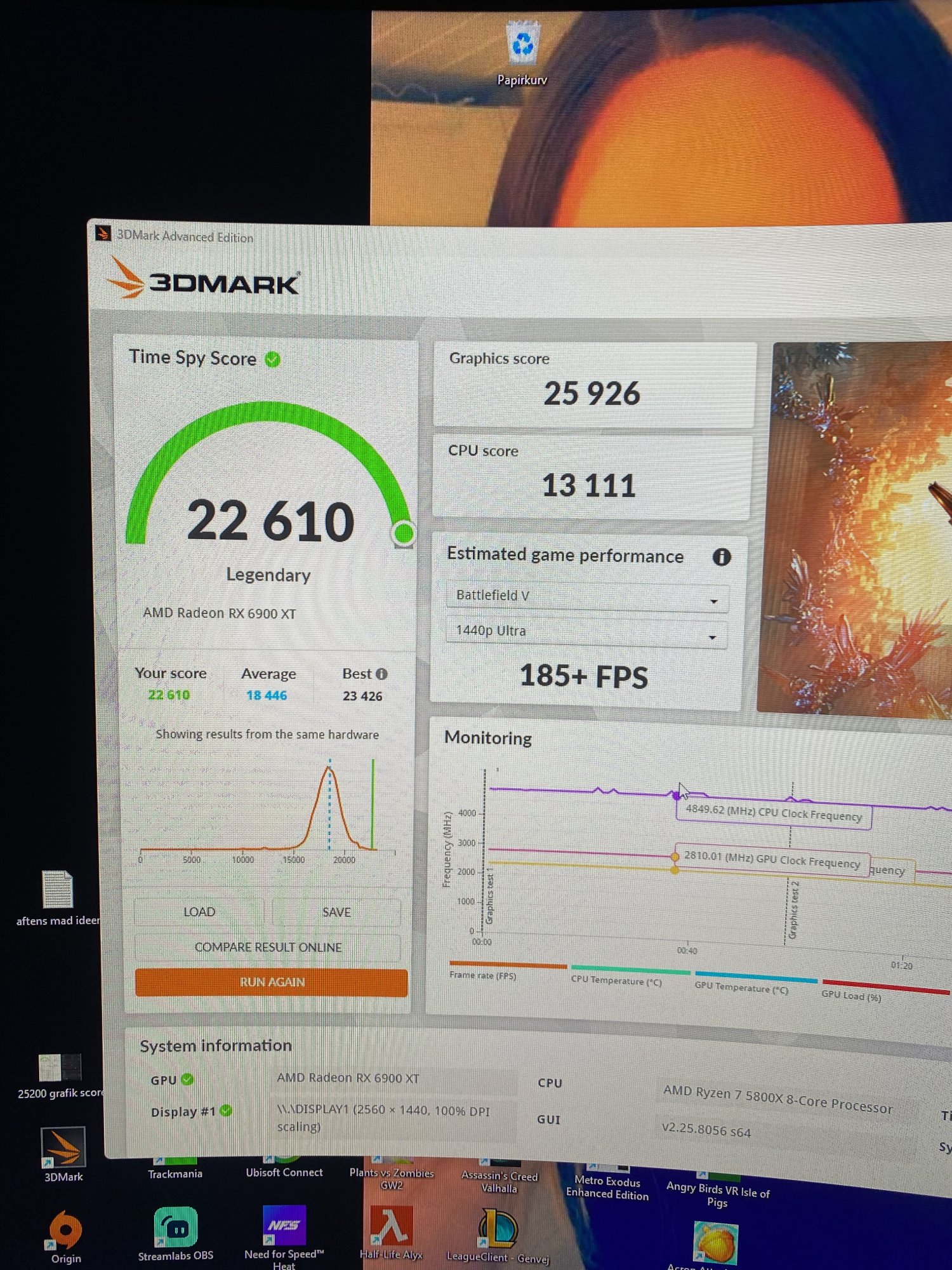

Hello every one. Got new Daily oc for my 6900xt.

Take a look 🤩✌️ 6900xt toxic Extreme with mpt


Attachments

  • D67BD306-6C4E-4F4D-95E7-42BE1B8AD2E2.jpeg
    886 KB · Views: 0

R-Type

[H]ard|DCer of the Month - October 2011
Joined
Mar 6, 2006
Messages
2,757
Wow, what's your average gpu clock during the run?


Nordskov

n00b
Joined
Feb 25, 2022
Messages
20
Update just made it even higher soooo close of 26000 i almost Can taste it 🫣🤞

I Think avg is around 2830mhz




Nordskov

n00b
Joined
Feb 25, 2022
Messages
20
Next step is overclocking your wallet and turning it into a 7900 XTX...
Actually i Think i skip the 7000 Series. My friend Got oced 7900xt. And he only barely beats me ingame fps. The xtx sure is faster. But not worth it when i Got this fast a 6900xt 😅


R-Type

[H]ard|DCer of the Month - October 2011
Joined
Mar 6, 2006
Messages
2,757
I'm in the same boat, plus there are all the reports of the 7900 silicon having some late discovered hardware bugs that required neutering performance. Another point of comparison: an overclocked 6900XT is the same architecture as the Series X with more than twice the throughput, there isn't going to be any game released that isn't scalable to our cards until the Series X and PS5 are fully deprecated near the end of the decade.

Here's hoping that by next generation AMD gets some proper ray tracing support.

  • Like
Reactions: pavel
like this

bl4C3y3

Weaksauce
Joined
Nov 18, 2016
Messages
65
I think that puts me in 4th place for the Watercooled rankings as well. :)
sorry 6th ;)

Thanks for the tip bl4C3y3 . I went down a rabbit hole with MPT. I ended up settling on 2600/2700 @ 1.2v and overclocked the memory to 2150MHz fast timing. All it needed was more voltage on the SoC. Changed the power limit to 380w +15% since the card now pulls in 434w. Left the TDC @ 320 default.
https://www.3dmark.com/3dm/87704556?
Nice that it worked, I've added you to the list ... I think you still have some margin :)

Update just made it even higher soooo close of 26000 i almost Can taste it 🫣🤞
26000 would be cool ! ... and certainly as your daily OC ... anyway first place :D, now we just need a link to the validated result :p
(no worries if you forgot to save your highest run, i recently found out that all the results are automatically saved under \Documents\3DMark\, which you can load and then publish)

So the race is between the XTXH and the chiller !
(I'll just put it here again for convenience)

Water Cooling:
1. 25926 Nordskov, the 'XTXH' (to be validated)
2. 25695 BelowAmbient, the 'chiller' https://www.3dmark.com/3dm/85243423
3. 24467 bl4C3y3 https://www.3dmark.com/3dm/85513441?
4. 24412 Catsonar https://www.3dmark.com/spy/26633741
5. 23767 nxcess https://www.3dmark.com/3dm/87704556?
6. 23452 R-Type https://www.3dmark.com/3dm/86001914?
7. 23411 Zarathustra[H] https://www.3dmark.com/3dm/68596722?
8. 23029 Gideon https://www.3dmark.com/3dm/71914412?
9. 22850 NightReaver https://www.3dmark.com/3dm/75867005?
10. 22062 Chassepot (6800XT)

Air Cooling:
1. 23079 Mysterfix https://www.3dmark.com/spy/28585113
2. 22735 bl4C3y3 https://www.3dmark.com/3dm/72273323?
3. 22663 John1780 https://www.3dmark.com/3dm/72045575?
4. 22397 Starfalcon https://www.3dmark.com/spy/26262182
5. 22049 alceryes3 https://www.3dmark.com/spy/26674135
6. 21364 Thecold
7. 21269 Gideon
8. 21261 AVATARAT (6800XT) https://www.3dmark.com/3dm/72606418
9. 20994 kwikgta
10. 20978 newls1


Nordskov

n00b
Joined
Feb 25, 2022
Messages
20
sorry 6th ;)


Nice that it worked, I've added you to the list ... I think you still have some margin :)


26000 would be cool ! ... and certainly as your daily OC ... anyway first place :D, now we just need a link to the validated result :p
(no worries if you forgot to save your highest run, i recently found out that all the results are automatically saved under \Documents\3DMark\, which you can load and then publish)

So the race is between the XTXH and the chiller !
(I'll just put it here again for convenience)

Water Cooling:
1. 25926 Nordskov, the 'XTXH' (to be validated)
2. 25695 BelowAmbient, the 'chiller' https://www.3dmark.com/3dm/85243423
3. 24467 bl4C3y3 https://www.3dmark.com/3dm/85513441?
4. 24412 Catsonar https://www.3dmark.com/spy/26633741
5. 23767 nxcess https://www.3dmark.com/3dm/87704556?
6. 23452 R-Type https://www.3dmark.com/3dm/86001914?
7. 23411 Zarathustra[H] https://www.3dmark.com/3dm/68596722?
8. 23029 Gideon https://www.3dmark.com/3dm/71914412?
9. 22850 NightReaver https://www.3dmark.com/3dm/75867005?
10. 22062 Chassepot (6800XT)

Air Cooling:
1. 23079 Mysterfix https://www.3dmark.com/spy/28585113
2. 22735 bl4C3y3 https://www.3dmark.com/3dm/72273323?
3. 22663 John1780 https://www.3dmark.com/3dm/72045575?
4. 22397 Starfalcon https://www.3dmark.com/spy/26262182
5. 22049 alceryes3 https://www.3dmark.com/spy/26674135
6. 21364 Thecold
7. 21269 Gideon
8. 21261 AVATARAT (6800XT) https://www.3dmark.com/3dm/72606418
9. 20994 kwikgta
10. 20978 newls1
26099 for Daily settings !!! Did it

https://www.3dmark.com/spy/35148012


Attachments

  • 9EC2A9D4-887E-4562-9D6B-36892BDC9E77.png
    627.4 KB · Views: 1
Last edited:

bl4C3y3

Weaksauce
Joined
Nov 18, 2016
Messages
65
+26000 !!! 🎉

Water Cooling:
1. 26099 Nordskov, the 'XTXH' https://www.3dmark.com/spy/35148012
2. 25695 BelowAmbient, the 'chiller' https://www.3dmark.com/3dm/85243423
3. 24467 bl4C3y3 https://www.3dmark.com/3dm/85513441?
4. 24412 Catsonar https://www.3dmark.com/spy/26633741
5. 23767 nxcess https://www.3dmark.com/3dm/87704556?
6. 23452 R-Type https://www.3dmark.com/3dm/86001914?
7. 23411 Zarathustra[H] https://www.3dmark.com/3dm/68596722?
8. 23029 Gideon https://www.3dmark.com/3dm/71914412?
9. 22850 NightReaver https://www.3dmark.com/3dm/75867005?
10. 22062 Chassepot (6800XT)

Air Cooling:
1. 23079 Mysterfix https://www.3dmark.com/spy/28585113
2. 22735 bl4C3y3 https://www.3dmark.com/3dm/72273323?
3. 22663 John1780 https://www.3dmark.com/3dm/72045575?
4. 22397 Starfalcon https://www.3dmark.com/spy/26262182
5. 22049 alceryes3 https://www.3dmark.com/spy/26674135
6. 21364 Thecold
7. 21269 Gideon
8. 21261 AVATARAT (6800XT) https://www.3dmark.com/3dm/72606418
9. 20994 kwikgta
10. 20978 newls1

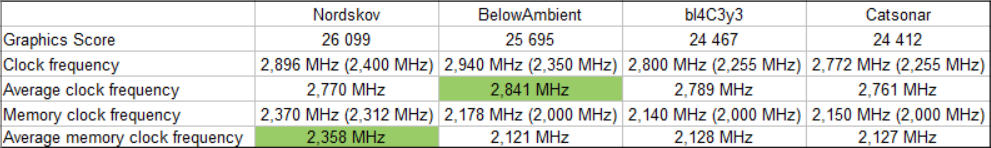

I've been testing and analyzing the 3dmark results a little more, and it seems the added points come from the higher memory clock on Nordskov's XTXH ?
BelowAmbient has about 70Mhz higher average clock, but 240Mhz lower memory clock ...

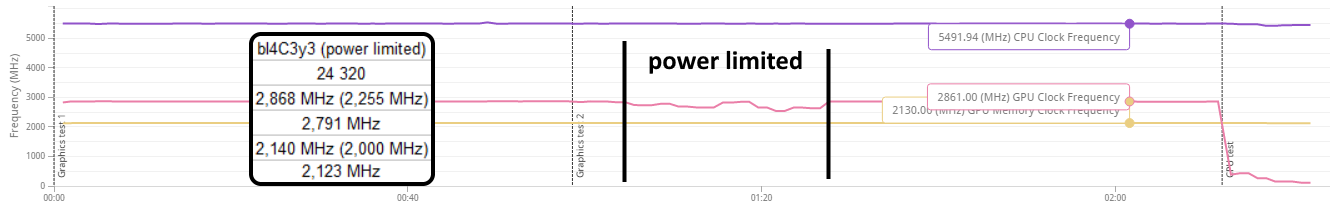

And as a guess, I would say you both are still power limited ?
(because of the difference between clock and average in the 3dmark reports, at least on my side it looks like that when I'm power limited)


R-Type

[H]ard|DCer of the Month - October 2011
Joined
Mar 6, 2006
Messages
2,757
+26000 !!! 🎉

Water Cooling:
1. 26099 Nordskov, the 'XTXH' https://www.3dmark.com/spy/35148012
2. 25695 BelowAmbient, the 'chiller' https://www.3dmark.com/3dm/85243423
3. 24467 bl4C3y3 https://www.3dmark.com/3dm/85513441?
4. 24412 Catsonar https://www.3dmark.com/spy/26633741
5. 23767 nxcess https://www.3dmark.com/3dm/87704556?
6. 23452 R-Type https://www.3dmark.com/3dm/86001914?
7. 23411 Zarathustra[H] https://www.3dmark.com/3dm/68596722?
8. 23029 Gideon https://www.3dmark.com/3dm/71914412?
9. 22850 NightReaver https://www.3dmark.com/3dm/75867005?
10. 22062 Chassepot (6800XT)

Air Cooling:
1. 23079 Mysterfix https://www.3dmark.com/spy/28585113
2. 22735 bl4C3y3 https://www.3dmark.com/3dm/72273323?
3. 22663 John1780 https://www.3dmark.com/3dm/72045575?
4. 22397 Starfalcon https://www.3dmark.com/spy/26262182
5. 22049 alceryes3 https://www.3dmark.com/spy/26674135
6. 21364 Thecold
7. 21269 Gideon
8. 21261 AVATARAT (6800XT) https://www.3dmark.com/3dm/72606418
9. 20994 kwikgta
10. 20978 newls1

I've been testing and analyzing the 3dmark results a little more, and it seems the added points come from the higher memory clock on Nordskov's XTXH ?
BelowAmbient has about 70Mhz higher average clock, but 240Mhz lower memory clock ...
View attachment 545149

And as a guess, I would say you both are still power limited ?
(because of the difference between clock and average in the 3dmark reports, at least on my side it looks like that when I'm power limited)
View attachment 545150
Good insight on the memory, how are you doing that Nordskov? Mine gets flaky above 2130 with tight timings, assume you're running loose? Any other modifications?


nxcess

2[H]4U
Joined
Dec 22, 2004
Messages
2,670
Good insight on the memory, how are you doing that Nordskov? Mine gets flaky above 2130 with tight timings, assume you're running loose? Any other modifications?
I had the same issue. Couldn't even go above 2120 MHz. Increase the SoC value (the box in red) until the card is stable. I did 100 at a time. Use timespy to check stability. 2150MHz score will be higher than 2125 MHz (I did 25MHz increments).



A few things I picked up with MPT
1. To calculate the TDC (A) (box in orange) for GFX is max wattage / voltage. In my case 434W / 1.2V = ~365A
2. Set wattage to 500W during testing and use HWmonitor (or something similar). The card will pull the wattage it needs for the overclock. My card needed 434W so 380W x 15% = 437W. Just be aware of the hotspot temp if you're aircooled.



3. My 2700MHz wall was due to this limit in my bios. Changed it to 3000MHz. YMMV

Last edited:

bl4C3y3

Weaksauce
Joined
Nov 18, 2016
Messages
65
Good insight on the memory, how are you doing that Nordskov? Mine gets flaky above 2130 with tight timings, assume you're running loose? Any other modifications?
He has the XTXH chip ("sapphire toxic extreme xtxh"), it's a higher clocked chip and has 2250 MHz (18 Gbps) memory vs the normal 2000 MHz (16 Gbps).
So he can go to 2300+ while can only go to 2150 :)

I had the same issue. Couldn't even go above 2120 MHz. Increase the SoC value (the box in red) until the card is stable. I did 100 at a time. Use timespy to check stability. 2150MHz score will be higher than 2125 MHz (I did 25MHz increments).
I have never dared to touch those values, interesting, maybe i should give it a try ... not that there is much to win in my case, I get it stable at 2140 (with default of value 800), but not so much at 2150 ... or maybe the unsuccessful runs with 2140 are actually also caused by this value :D, so maybe I can get the other clocks higher when upping this value

3. My 2700MHz wall was due to this limit in my bios. Changed it to 3000MHz. YMMV
yes, mine is also at 3000 ... on the other hand, I think you can turn many of the settings of in the first tab under "overdrive features", but not really sure

EDIT:
seems I'm wrong about your point 3, just checked, with me it's on 3000 in the "OC limits" tab, in the "frequency" tab it also shows 2660 (and with me that 2660 limit seems to have no impact):

(and I think it's better not to turn off any options in the first tab, it seems that the corresponding feature will then also be disabled in the driver)

Last edited:

R-Type

[H]ard|DCer of the Month - October 2011
Joined
Mar 6, 2006
Messages
2,757
Funny how everyone gets more aggressive with their hardware once the next generation is available...


Nordskov

n00b
Joined
Feb 25, 2022
Messages
20
bl4C3y3
Naeh my 6900xt xtxh is 16gbps memory with normal Max 2150ft ram. But put on bios from lc model so i Can run 2400mhz ram at ft2.

I did manage 25799 or so at Stock bios. But the lc bios with faster ram med a boost at 300 points more ✌️😁. I Can run everyday stable 26000gpu score now it really rocks

Last edited:
