3D Print Your Own Kaby Lake DeLid Tool

Discussion in 'Intel Processors' started by FrgMstr, Jan 30, 2017.

  1. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    This was posted over on the 3D Center Forums. The post points to an "Intel Kaby Lake delid tool" design that can be implemented on a 3D printer.

    A simple delid tool that for chopping Intel Kabylake and Skylake CPU

    The author of the design does not have a 3D printer to try it out and test on, but I know some [H]'ers that do. If one of you guys wants to print this up using some "[H]ard" plastic, which I think would certainly be needed, I will subject it to abuse here if you want to ship it over.

  2. ir0nw0lf

    ir0nw0lf [H]ardness Supreme

    Messages:
    6,257
    Joined:
    Feb 7, 2003
    And we all know how much we love to see Kyle abuse hardware! :joyful:

    drescherjm likes this.
  3. James Robinson

    James Robinson Limp Gawd

    Messages:
    292
    Joined:
    Dec 4, 2016
    ... just keep your windows open.....

    Zarathustra[H] and ChoGGi like this.
  4. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    Hehe, I thought exactly the same thing. LOL!

  5. Spacy9

    Spacy9 Scotch is my Lord and Savior

    Messages:
    1,768
    Joined:
    Oct 13, 2000

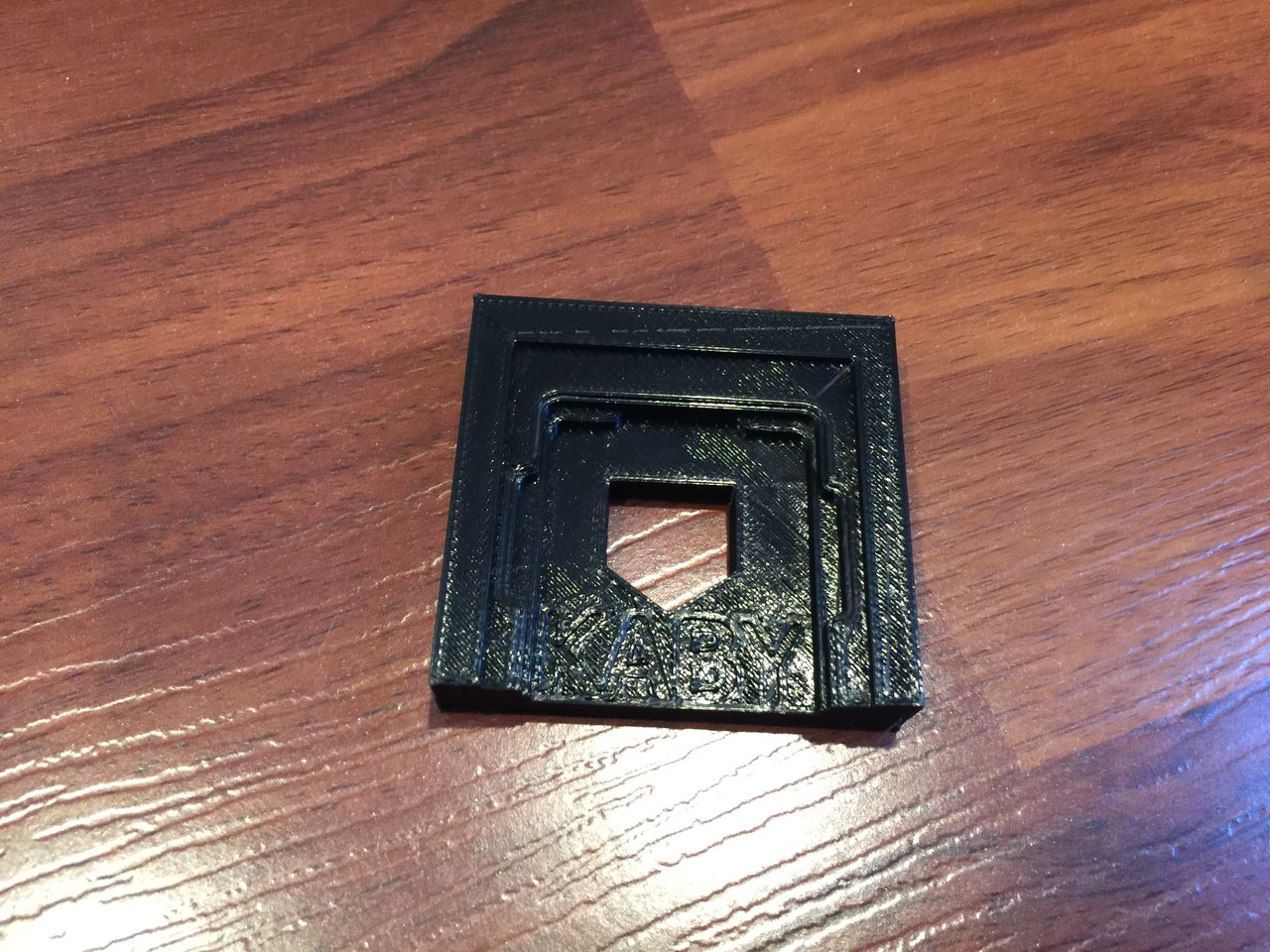

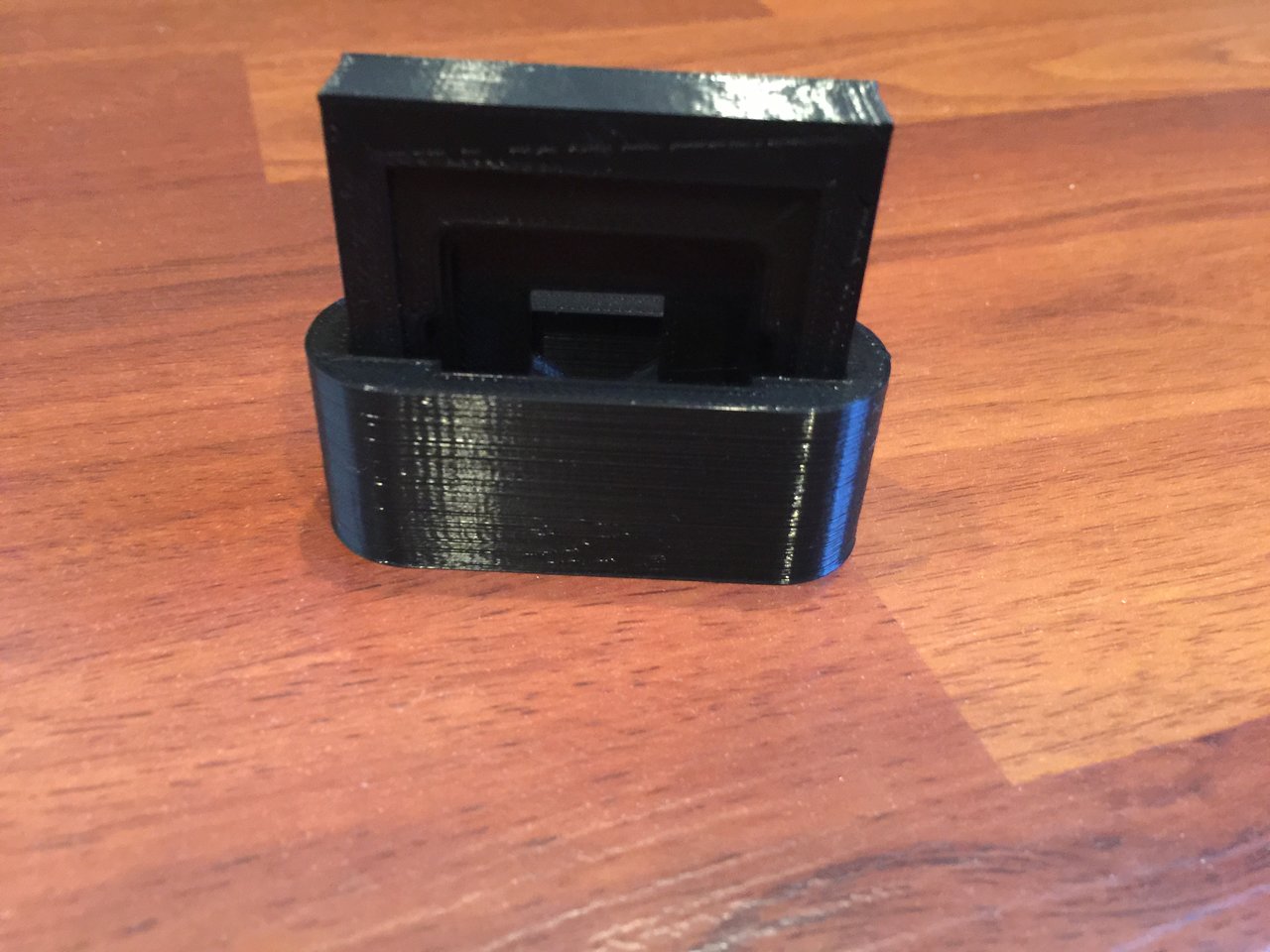

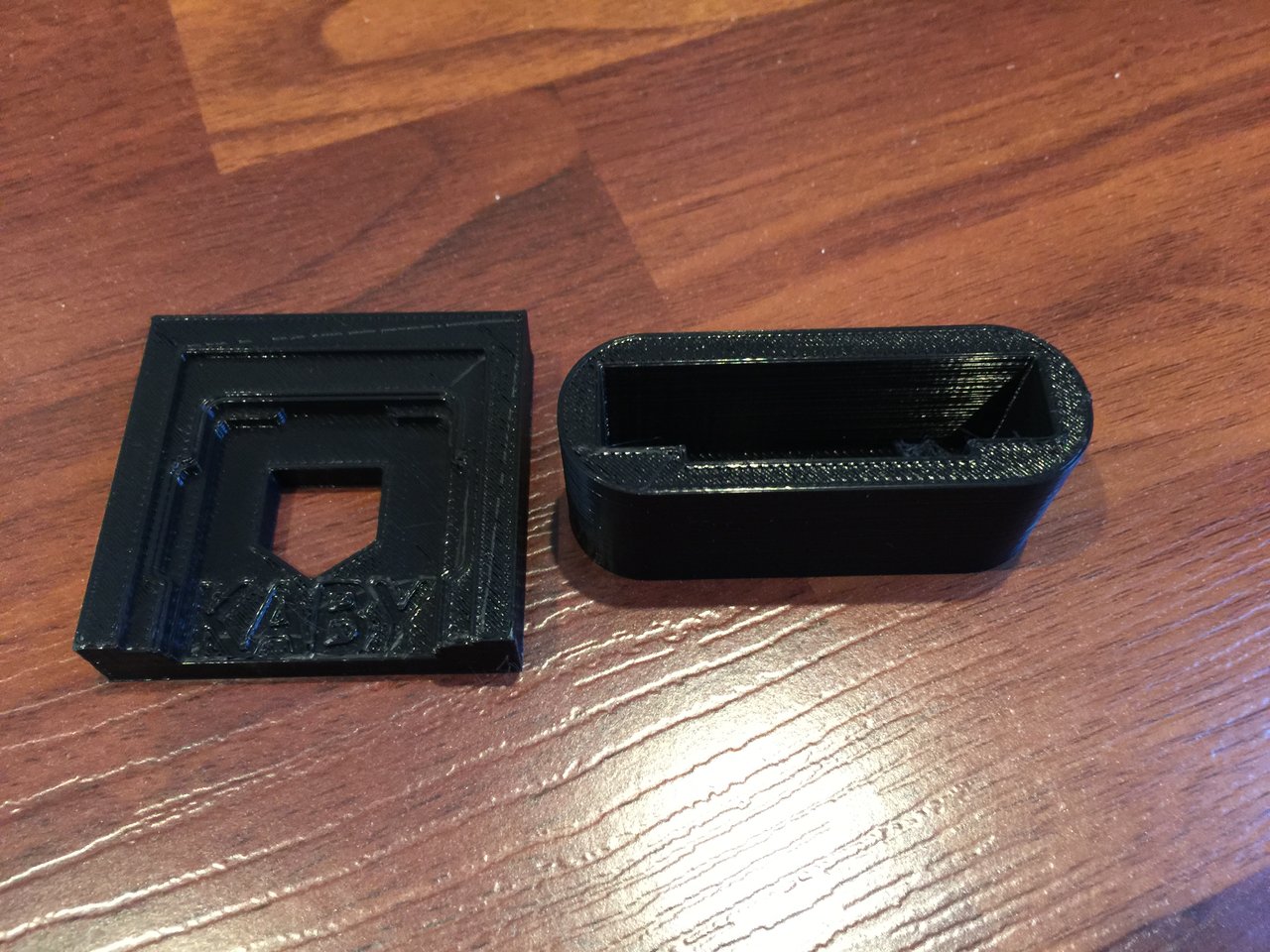

    Hey Kyle, I printed this out but don't have a chip to try it on. I'd be happy to send it to you. If you want it shoot me your address (PM) and I'll get it out for you tomorrow.

    IMG_2914.JPG IMG_2915.JPG IMG_2916.JPG

    Factum, {NG}Fidel, J-Will and 5 others like this.
  6. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
  7. Ocellaris

    Ocellaris Ginger @le, an alcoholic's best friend.

    Messages:
    18,761
    Joined:
    Jan 1, 2008
    I would be high concerned about the 3D printed material breaking unevenly and damaging the CPU somehow. Nothing I've seen printed on cheap printers has been very rigid.

  8. gigaxtreme1

    gigaxtreme1 2[H]4U

    Messages:
    3,482
    Joined:
    Oct 1, 2002
    yeah, when you guys get a decent a tungsten carbine printuing tool ( I mean atomic deposition sharp), call me.

  9. thesmokingman

    thesmokingman [H]ardness Supreme

    Messages:
    4,772
    Joined:
    Nov 22, 2008
    Factum, auntjemima, {NG}Fidel and 3 others like this.
  10. JNavy89GT

    JNavy89GT [H]ard|Gawd

    Messages:
    1,770
    Joined:
    Apr 25, 2001
    if anyone has one of these, and wouldn't mind loaning it out, I'd pay shipping both ways and try to gift you something to make it worth yourwhile. LMK

    I need the skylake one BTW

  11. thesmokingman

    thesmokingman [H]ardness Supreme

    Messages:
    4,772
    Joined:
    Nov 22, 2008
    If you or anyone is in socal, send me a pm.

  12. Zarathustra[H]

    Zarathustra[H] Official Forum Curmudgeon

    Messages:
    27,635
    Joined:
    Oct 29, 2000
    Last edited: Jan 31, 2017
    FrgMstr likes this.
  13. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    Interesting design. I tell you though, give the amount of force it takes to pop the IHS off with the OE adhesive, I am not so sure that is the way to go. Would love to try one though.

    ccmfreak2 likes this.
  14. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    Oh I fully understand how it works, if machined exactly you would be putting force on the four corners as you turned it. Not exactly rocket science. But the fact is you are using "blunt force" on four pinpoint spots at the corners instead of evenly along one edge. I am not arguing for or against here, just sharing my thoughts after delidding a few here with this Delid Die-mate Tool.

  15. WheresWaldo

    WheresWaldo Limp Gawd

    Messages:
    182
    Joined:
    Dec 7, 2004
    The Aquacomputer one is much harder to print than the one which uses a vise. I have tried them both. The locating pins on the Aquacomputer are the fragile area and easily broken. I broke three during assembly of the tool. Ended up taking four button head screws and used them as the locating pins partially screwed into the base.

    The same guy who did this Kaby Lake model has ones for Sky Lake and Ivy Bridge also. It is very simplistic in design and it just plain works. When I went to delid my 6700 I did use a small blade to ease the corners a bit before sticking it in the tool. Then it only took two complete rotations of the vise handle to pop off the lid. Easing the corners was probably completely unnecessary.
    https://www.youmagine.com/chri/designs

  16. mullet

    mullet [H]ard|Gawd

    Messages:
    1,629
    Joined:
    Aug 19, 2004
    Needs a DO NOT LICK sticker.

  17. ir0nw0lf

    ir0nw0lf [H]ardness Supreme

    Messages:
    6,257
    Joined:
    Feb 7, 2003
    Just out of curiosity, about how much is it costing to print up one of these things? I have literally no clue, I have never messed with this stuff.

  18. WheresWaldo

    WheresWaldo Limp Gawd

    Messages:
    182
    Joined:
    Dec 7, 2004
    ir0nw0lf Depends on your printer. If you own your own FDM printer the material cost is about $1 USD. A printing service will charge you about $20-30USD depending on material.

  19. T_A

    T_A Limp Gawd

    Messages:
    399
    Joined:
    Aug 4, 2005
    Looks too fragile for the task imo, i doubt the plastic will hold.

  20. freeloader1969

    freeloader1969 2[H]4U

    Messages:
    2,241
    Joined:
    Dec 13, 2003
    "We will see if we can get around to breaking something expensive later today."...I love how you have the BALLS and RESOURCES to do so. :)

  21. Digital Viper-X-

    Digital Viper-X- [H]ardForum Junkie

    Messages:
    13,558
    Joined:
    Dec 9, 2000
  22. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    Should we use a hammer or a vice?

  23. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    I don't know what you are talking about. :whistle:

    JDon likes this.
  24. Seventyfive

    Seventyfive [H]ard|Gawd

    Messages:
    1,346
    Joined:
    Jul 14, 2004
    Your best bet is to go to https://www.3dhubs.com/ and find someone local to your area.

    For reference, the cheapest guy by me will print it for $6

  25. ir0nw0lf

    ir0nw0lf [H]ardness Supreme

    Messages:
    6,257
    Joined:
    Feb 7, 2003
    Oh I have real intent on wanting something printed up, just curious what this kind of stuff typically costs. But I guess something like these deLidder :) tools, cost might as big a deal, esp. if they work well and don't break/wear down quickly.

  26. CaptNumbNutz

    CaptNumbNutz [H]ard as it Gets

    Messages:
    19,340
    Joined:
    Apr 11, 2007
    You're assuming a cheap printer is being used in the first place. You're also assuming every 3D printing material is the same and there aren't various other settings that affect the quality and accuracy of the print. The design can also easily be redesigned should they not handle the stresses involved.

    I will vouch for Spacy9 , he does outstanding work and is helping me on a separate project. I would be interested to see how these work out. If I upgrade my system, I may ask him to print one of these de-lidding tools for me also.

    Last edited: Feb 6, 2017
    FrgMstr likes this.
  27. sboucher

    sboucher Gawd

    Messages:
    550
    Joined:
    Oct 7, 2004
    Fuck that, I want to seem him pull out the good ol [H]ammer!


  28. Warrior

    Warrior [H]ardForum Junkie

    Messages:
    13,642
    Joined:
    Oct 13, 2004
    I just 3D printed the Ivey Bridge one and Skylake one. I'll be trying it out on an IvyBridge CPU tomorrow. :D

    Then, if it turns out to be successful, and easy, I'll do it to my Skylake Proc.

  29. Accursed

    Accursed Limp Gawd

    Messages:
    389
    Joined:
    Mar 28, 2008
    I'll probably print the skylake once I see if there's a difference between the 40% and the 100%. All I've got right now is PLA, hope that's good enough!

    Ohh and I need a vice.... I have a c-clamp that would probably work tho.

  30. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
    I was about to delid a 6700K for the tool test, but figure I might as well get some temps first. DOH!

  31. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    47,989
    Joined:
    May 18, 1997
  32. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    12,043
    Joined:
    Oct 7, 2000
    hahaha you put your unit in a vice!

  33. RedWagnum

    RedWagnum Gawd

    Messages:
    583
    Joined:
    Mar 30, 2007
    ... and popped his load lid!

  34. HoffY

    HoffY Gawd

    Messages:
    938
    Joined:
    Mar 7, 2005
    geeze that shock when it let go was a bit unsettling!! I might have to redesign/do a bit of tweaking to that design to alleviate this if i give it a go!

    Top job all-round lads!

  35. sirmonkey1985

    sirmonkey1985 [H]ard|DCer of the Month - July 2010

    Messages:
    21,095
    Joined:
    Sep 13, 2008
    as long as the cpu holding block is hitting the inside of the pressure piece at the same time or before the cpu hits the edge of that overhang it should be a non issue. at that point the only risk is if the whole thing shatters.

  36. WheresWaldo

    WheresWaldo Limp Gawd

    Messages:
    182
    Joined:
    Dec 7, 2004
    The originator used a piece of foam on the inside to cushion the blow. At least on the first one posted to YouMagine. I used mine just like Kyle did (sans foam) with no issues.

  37. ir0nw0lf

    ir0nw0lf [H]ardness Supreme

    Messages:
    6,257
    Joined:
    Feb 7, 2003
    Oddly disturbing *and* satisfying when it went POP. The 40% tool looks like it held up quite nicely. But would it hold up after several+ beatings?

  38. Accursed

    Accursed Limp Gawd

    Messages:
    389
    Joined:
    Mar 28, 2008
    Great video! Looks like 40% it is! What are some recommendations on TIMs?

  39. JDon

    JDon [H]Lite

    Messages:
    120
    Joined:
    Jun 24, 2015
    The hammer or the vice? :p

  40. alxlwson

    alxlwson You Know Where I Live

    Messages:
    5,656
    Joined:
    Aug 25, 2013
    CLU is the only TIM to use under lid.
