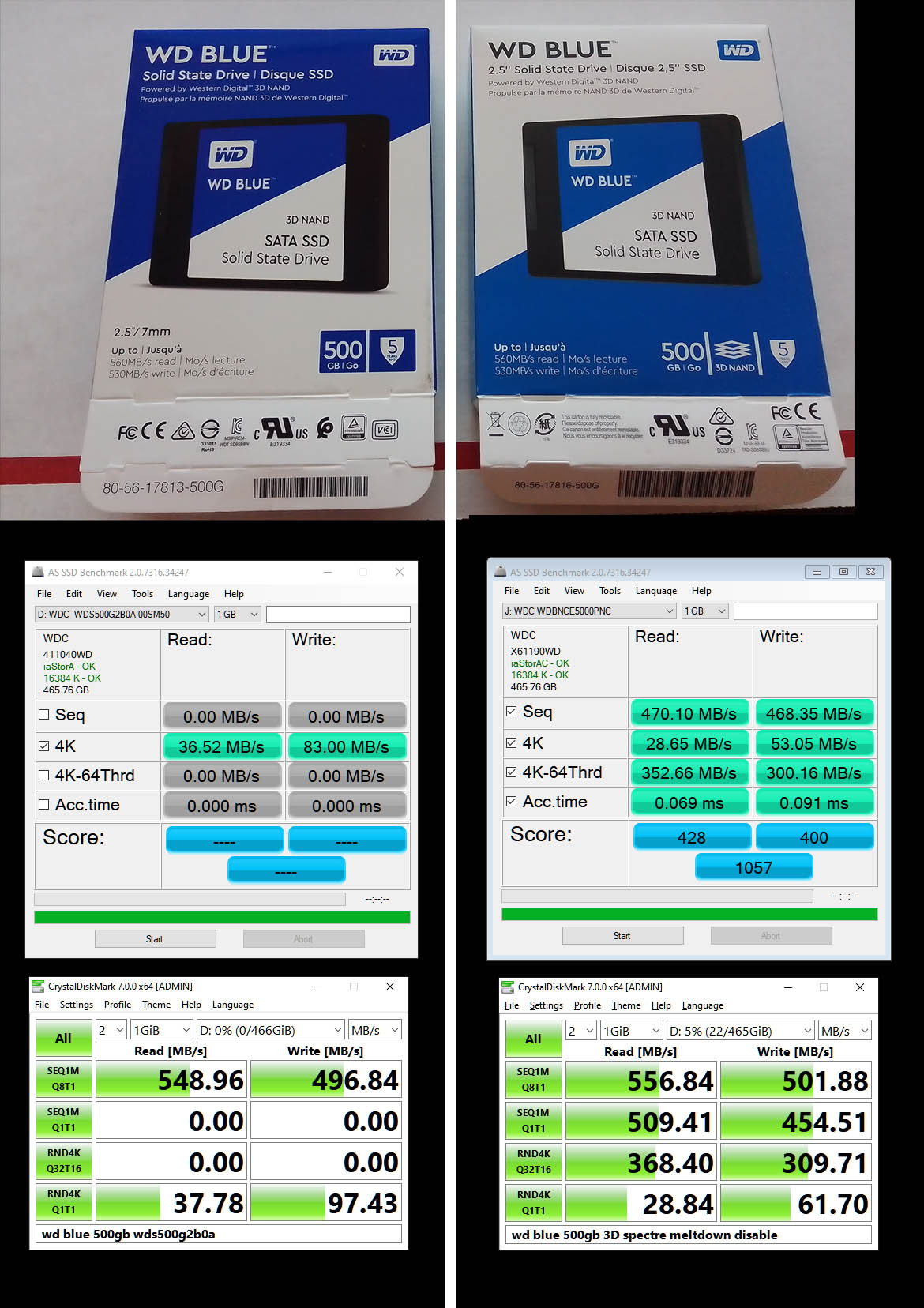

2 different versions of wd blue 3D 2.5" ssd drives. One is significantly slower. Beware.

Kdawg

Gawd
Joined
Aug 12, 2017
Messages
976
There's a gimped version of the wd blue 3d ssd being sold at bestbuy and walmart with shit random 4k speeds.


On the outside, they look identical. Both advertised as 3D nand.

2 model numbers: wds500g2b0a and wdbnce5000pnc

The latter is sold at bestbuy and walmart, and you should avoid this shit at all costs.

Bestbuy also sells other WDBxxxxxxPNC model sizes which you should probably avoid as well.
WDBNCE2500PNC-WRSN
WDBNCE0010PNC-WRSN
(edit: this 1tb performs well, made in malaysia fw 401120RL)



I haven't torn down the g2b0a, but I imagine the circuit board and components are the same design as the PNC I tore down previously in another post.

The popular version is made in malaysia. 5000pnc is made in china.


I dunno what's going on, but the bestbuy/walmart version might be using rejected chips? who knows.
But the performance difference is huge.

oddly enough, the firmware is different, however, thousands of user tests have shown that the g2b0a with x61190wd fw was just as fast as the 411040wd fw in my sample.

In this comparison, both drives were made in feb and march 2020....


Last edited:

Zepher

[H]ipster Replacement
Joined
Sep 29, 2001
Messages
17,400
I have one of those in my old machine, bought from Walmart.
Mobo is only Sata 2, will the random 4k be lower due to the interface?


Kdawg

Gawd
Joined
Aug 12, 2017
Messages
976
My box is the one with the White on top.

View attachment 244752
yep. see, you got the gimped version with the shitty rnd4k q1t1 speeds.... less than 30/60 r/w

normal 4k speeds should be ~40/100 MB/s r/w for modern computers within the last 5 years.


my ancient athlon 64 sata 2 really gimps an ssd's potential.


Last edited:

N4CR

Supreme [H]ardness
Joined
Oct 17, 2011
Messages
4,590
Do they honestly think enthusiasts are that stupid or is it more aimed at beige box OEMs etc... the fact this crap is on a shelf says they do think we are so stupid. I have never been a fan of WD after past issues others I knew had and this will just keep me away from them even longer.


daglesj

Supreme [H]ardness
Joined
May 7, 2005
Messages
5,191
Still several times better than that 5400rpm 320GB Toshiba that was in granny's laptop. Not an issue for most.


Shikami

Gawd
Joined
Apr 5, 2010
Messages
702
I have the "whitebox" WD500G2B0A which I purchased from Newegg a few years ago, and I still have the box too. This is my CrystalDiskMark 7 results. I have a 9900K, no MCE and overclocking of any sorts, 2666 RAM, all P and C states enabled, and mitigation is enabled. The controller is using the latest 17.8.0.1065 drivers. Also, only had a 100GB left on the drive when performing the test, and recently a couple of weeks ago I did TRIM the drive. I was recently thinking about getting a 1TB because of cost and performance is decent. Although, I never buy much from brick and mortar I will pay more attention to the product code if I do procure one.

Western Digital SSD 500GB Desktop.png

Last edited:

Kdawg

Gawd
Joined
Aug 12, 2017
Messages
976
I have the "whitebox" WD500G2B0A which I purchased from Newegg a few years ago, and I still have the box too. This is my CrystalDiskMark 7 results. I have a 9900K, no MCE and overclocking of any sorts, 2666 RAM, all P and C states enabled, and mitigation is enabled. The controller is using the latest 17.8.0.1065 drivers. Also, only had a 100GB left on the drive when performing the test, and recently a couple of weeks ago I did TRIM the drive. I was recently thinking about getting a 1TB because of cost and performance is decent. Although, I never buy much from brick and mortar I will pay more attention to the product code if I do procure one.

View attachment 245136
just curious, what does CDM random 4k Q1T1 look like for your samsung sata drives currently filled as is. ?

can you run just the Q1T1 random test and post results?


Maxx

[H]ard|Gawd
Joined
Mar 31, 2003
Messages
1,612
I've seen the original model number come with the firmware revision you have on the Best Buy drive, and it performs normally. Firmware revision is tied to controller + flash. It is possible for two drives with the same firmware version to be optimized differently, however. For example I have an EX920 and SX8200 (Non-Pro) with the same firmware revision - they both use the SM2262 with B16A flash - but they perform differently. The EX920 has a much smaller SLC cache and is faster at low queue depth 4K.

You have to keep in mind that synthetic benchmarks are testing within the SLC cache. This means, for example, that the program time (and thus speed) won't be taking the base flash into account. It's in single-bit mode. Yes, 4K LQD will be lower on DRAM-less drives, different controllers perform differently, etc., but the same controller (w/DRAM) and same type of flash should not be drastically different. This appears to be a firmware issue of some sort.

I appreciate you posting this information and I will be investigating this as I'm already investigating if they've diminished the DRAM at higher capacities. I just don't want to jump to conclusions. FYI your one benchmark is with iaStorA and the other iaStorAC.

Last edited:

Shikami

Gawd
Joined
Apr 5, 2010
Messages
702
just curious, what does CDM random 4k Q1T1 look like for your samsung sata drives currently filled as is. ?

can you run just the Q1T1 random test and post results?
Sure, I was curious and did a full bench. I have not done any benching in a long time with any of my drives. The drive has some mileage and wanted to see how it is doing. I do not use RAPID.
Samsung 850 EVO.png


Kdawg

Gawd
Joined
Aug 12, 2017
Messages
976
I've seen the original model number come with the firmware revision you have on the Best Buy drive, and it performs normally. Firmware revision is tied to controller + flash. It is possible for two drives with the same firmware version to be optimized differently, however. For example I have an EX920 and SX8200 (Non-Pro) with the same firmware revision - they both use the SM2262 with B16A flash - but they perform differently. The EX920 has a much smaller SLC cache and is faster at low queue depth 4K.

You have to keep in mind that synthetic benchmarks are testing within the SLC cache. This means, for example, that the program time (and thus speed) won't be taking the base flash into account. It's in single-bit mode. Yes, 4K LQD will be lower on DRAM-less drives, different controllers perform differently, etc., but the same controller (w/DRAM) and same type of flash should not be drastically different. This appears to be a firmware issue of some sort.

I appreciate you posting this information and I will be investigating this as I'm already investigating if they've diminished the DRAM at higher capacities. I just don't want to jump to conclusions. FYI your one benchmark is with iaStorA and the other iaStorAC.

I actually went through 3 different drives of the 5000pnc variety.
2 from bestbuy and 1 from walmart, and they all perform the same in 4k lqd
granted they are all made within weeks of one another.

and yeah, I had to downgrade my iastorAC driver because it kept crashing during benchmarks.

But I did test the 5000pnc previously with iastorA, and the results were no different....

WDC WDBNCE5000PNC_500GB_1GB-20200428-1703.png




even though you say benchmarks are testing slc cache, it still does make a tangible difference, particularly during boot times.

the 860 evo was almost 4 seconds faster to boot up than my gimped WD 5000pnc.


Kdawg

Gawd
Joined
Aug 12, 2017
Messages
976
I assumed wrong.

Looks like the bestbuy 1tb version of the wdbnce drive is just fine and performs well, like the best blue ssds.

It has firmware 401120RL, which even some 5000pnc and 2500pnc models have, according to google.

so I guess the x61190wd 5000pnc made in china is the gimped version?

There might be some 5000pnc made in malaysia I'm guessing.

This 1tb 0010pnc is made in malaysia, just like the amazon and newegg versions.


as-ssd-bench WDC  WDBNCE0010P 5.21.2020 2-38-56 AM.png


WDC  WDBNCE0010PNC_1000GB_1GB-20200521-0245.png




(4mb blocks)



Inside, the nands are made in malaysia, the board design is also the same as the current 500gb version.
Both 500gb and 1tb have the same amount of dram.


Last edited:

daglesj

Supreme [H]ardness
Joined
May 7, 2005
Messages
5,191
I must admit I never bother with firmware on SSDs anymore. Back in the day it was the first thing I did but now so used to them and so common I can't be bothered.


likeman

Gawd
Joined
Aug 17, 2011
Messages
666
firmware issues seem it's only a problem now on intel Enterprise ssds (0MB bug even on recent intel Enterprise SSDs) or the older samsung 840 SSDs or cheap china made micro recycled NAND SSDs


LBJM

Limp Gawd
Joined
Dec 17, 2011
Messages
320
I hate that there's two different types of M.2 cards one is SATA and the other is NVMe. When looking at SSDs in general SATA or M.2 I always look up the model number. Sadly WD likes to play tricks with their drives, I try to avoid them. BUT again always look up the model numbers of any drive.
